Binary Inputs BE

REF: BE-XXXXX.02 Categorias: , Etiquetas: ,
Description

The MDT Binary Input BE, for example, makes conventional push-buttons, switches, window and auxiliary contacts “smart” for KNX. The comprehensive application provides the suitable parameters for various applications. Versions for floating contacts, 24 V AC/DC and 230 V AC are available. To connect push-buttons or window / auxiliary contacts. New multi-touch function, sends up to 4 values / DPTs on the same or diffrent objects. Innovative group control with long / extra long button press. 4 integrated logic modules, e.g. evaluation of the inputs (e.g. window closed or sending second object). NO or NC contact operation, sending contact status. Operation of blinds and shutters, 1 and 2 button operation. Forced setting function for each output. Scenes, block objects for each channel. Operation with short / long button push and 2 objects. Integrated pulse and switching counters with extensive counter functions (suitable for 30 ms S0 pulses). Cyclical sending, sending after reset. Internally generated contact voltage of 12 V. Production in Germany, certified according to ISO 9001. 3 year warranty.

Installation Type: MDRC.

Channels: 4-fold, 8-fold, 16-fold, 32-fold.

Execution: for potential free contacts, 24 V AC/DC, 230 V.

Device width: 2SU, 4SU, 8SU, 12SU.

Downloads

Technical Documentation Date Version Downloads
Productdatabase ETS5/6 from ETS5.7x 01/22 V3.2a knxprod
Functional overview pdf
Datasheet pdf
Assembly and operational instructions pdf
Technical manual pdf
Tender texts Link
CAD-drawing zip
Available Variants of this series:
Binary Inputs BE - BE-04000.02
Channels: 4-fold; Execution: for potential free contacts; Device width: 2SU
Binary Inputs BE - BE-04024.02
Channels: 4-fold; Execution: 24 V AC/DC; Device width: 2SU
Binary Inputs BE - BE-04230.02
Channels: 4-fold; Execution: 230 V; Device width: 2SU
Binary Inputs BE - BE-08000.02
Channels: 8-fold; Execution: for potential free contacts; Device width: 4SU
Binary Inputs BE - BE-08024.02
Channels: 8-fold; Execution: 24 V AC/DC; Device width: 4SU

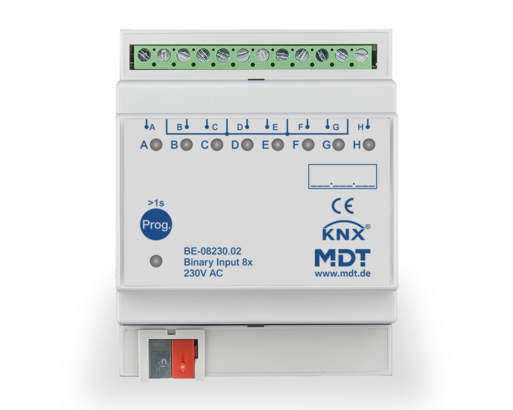

Binary Inputs BE - BE-08230.02
Channels: 8-fold; Execution: 230 V; Device width: 4SU
Binary Inputs BE - BE-16000.02
Channels: 16-fold; Execution: for potential free contacts; Device width: 8SU
Binary Inputs BE - BE-16024.02
Channels: 16-fold; Execution: 24 V AC/DC; Device width: 8SU
Binary Inputs BE - BE-16230.02
Channels: 16-fold; Execution: 230 V; Device width: 8SU
Binary Inputs BE - BE-32000.02
Channels: 32-fold; Execution: for potential free contacts; Device width: 12SU

Additional information

Variants

BE-04000.02, BE-04024.02, BE-04230.02, BE-08000.02, BE-08024.02, BE-08230.02, BE-16000.02, BE-16024.02, BE-16230.02, BE-32000.02

Brands

MDT
