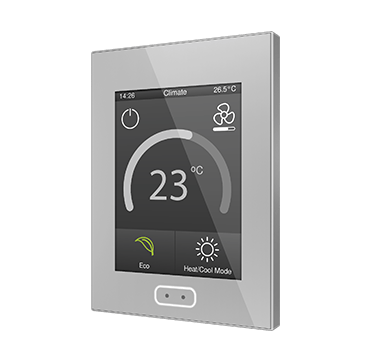

Z40 | Capacitive touch panel (4.1″ display)

Description

Capacitive touch panel with a backlit 4.1″ display, proximity sensor, internal temperature probe and two independent thermostats. 56 control points/buttons divided over 7 pages. The built-in proximity sensor makes the screensaver (image, time and date and/or temperature) appear when the touch panel is not being used and the luminosity sensor adjusts the brightness automatically. 4 analog-digital inputs included to be configured as binary inputs, sensors, push buttons, temperature probes or motion detectors.

Installation in standard European, British, Italian, Australian and American back boxes.

Available in anthracite, silver, white and gloss white.

Accessories: temperature probe and motion sensor.

APPLICATION PROGRAM ETS:

Only for ETS5/ETS6

Downloads

Technical Documentation Date Version Downloads
Datasheet 7 pdf
Manual [3.3]_a pdf
Icon List [3.1]_a pdf
Specific Manuals:
 – Brightness Manual [2.0]_a pdf
 – Proximity and Luminosity Manual [5.0]_a pdf
 – Zennio Thermostat Manual [3.0]_a pdf
 – Temperature Probe Manual [3.0]_a pdf
 – Binary Inputs Manual [2.0]_a pdf
 – Motion Detector Manual [3.0]_a pdf
Zxx Image Downloader DCA Manual [3.0]_b pdf
Technical Note – DCA Installation pdf
Available Variants of this series:
Z40 | Capacitive touch panel (4.1" display) - ZVIZ40GW
Colour: Gloss White
Z40 | Capacitive touch panel (4.1" display) - ZVIZ40W
Colour: White
Z40 | Capacitive touch panel (4.1" display) - ZVIZ40S
Colour: Silver
Z40 | Capacitive touch panel (4.1" display) - ZVIZ40A
Colour: Anthracite
