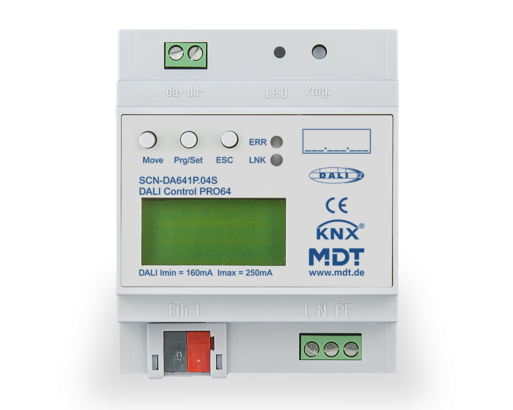

DALI Control Pro64 Gateway

REF: SCN-DA641P.04S Categorias: , , Etiquetas: , , , ,
Description

The MDT DALI Control PRO64 Gateway is a multi-master application controller for controlling electronic ballasts (ECG) with a DALI interface using the KNX bus. Aside from supporting DALI and DALI-2 compliant lights/ballasts, up to 8 DALI-2 motion detectors or light sensors can be connected. Using the integrated web interface, DALI commissioning and electronic ballast replacement is also possible without using the ETS. Individual control of up to 64 ECG / 16 DALI groups. KNX Secure device. Supports DALI and DALI-2 standard. Up to 8 DALI-2 motion detectors or light sensors can be additionally connected. Innovative HSV color control, RGB, RGBW and XY color according to Dali DT8 standard, 64 individual Channels / 16 DALI groups. Tunable White, color temperature control 64 individual Channels / 16 DALI groups. Supports different DALI DT6 / DT8 ECG. Integrated color control module for time dependent control. Manual operation for all 16 groups. 16 scenes with individual dimming times. Energy saving function, 16 flexible standby groups for switching off any individual channels / groups of ECGs (via additional KNX switch actuator). Simple group attribution directly on the device. Dali Commissioning via Webbrowser or directly on the device display. Detection of faulty lamps and faulty ECGs, quick exchange of ECG. Free DCA app for commissioning the DALI bus system. Commissioning with ETS5 or higher. Production in Germany certified according to ISO 9001. 3 year warranty.

Installation Type: MDRC.

Dali: Yes.

Device width: 4SU.

HSV Colour control: Yes.

RGB Colour control: Yes.

RGBW Colour control: Yes.

Tuneablewhite Colour control: Yes.

Downloads

Technical Documentation Date Version Downloads
Productdatabase ETS5/6 from ETS5.7x 12/21 V1.0a knxprod
Device Configuration App (DCA) ETS5/6 10/21 V1.1.0.0 etsapp
Firmwareupdates 03/23 V1.2.4 zip
Manual to update firmware pdf
Datasheet pdf
Assembly and operational instructions pdf
Technical manual pdf
Functional overview Comparison DALI Gateways pdf
CAD-drawing 05/22 zip
Tender texts Link
Available Variants of this series:
