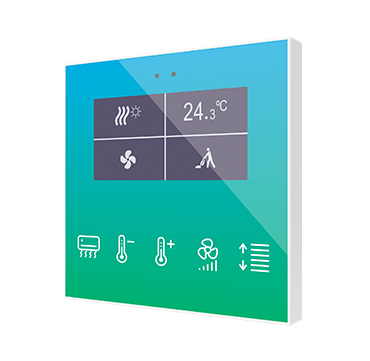

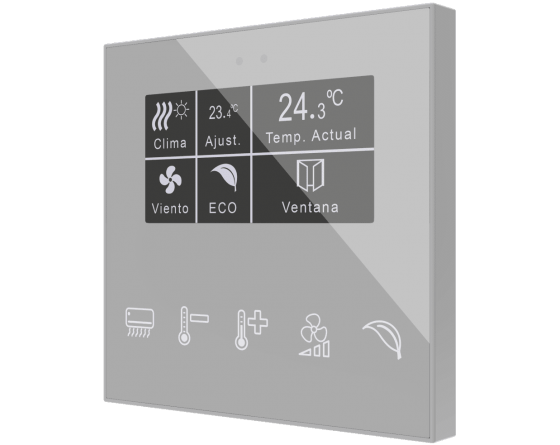

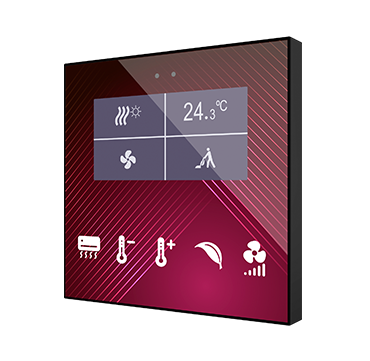

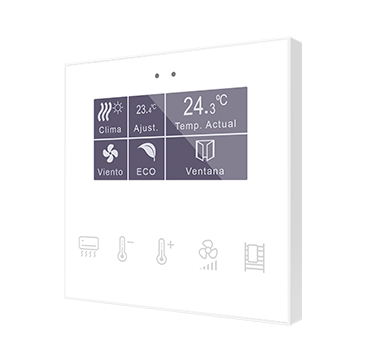

Flat Display v2 | Capacitive switch with display and humidity sensor

Description

Backlit capacitive touch panel in Flat family, with proximity and humidity sensor, flat design (9 mm) and total customization. Everyone can create unique compositions, including images, icons, texts or logos, which are printed on a high-strength tempered glass. Room control is simple with the 5 buttons available and up to 8 indicators can be shown on its 2.4″ display. The backlit icons for buttons regulate their brightness with the included ambient luminosity sensor and attenuate when the user is not detected by the proximity sensor. Flat Display v2 includes internal temperature probe and humidity sensor, as well as a thermostat and 2 analog-digital inputs that may be configured for potential-free sensors and push buttons, temperature probes or motion sensors.

Accessories: temperature probe and motion sensor.

On-line application for designing your own Capacitive Switch.

APPLICATION PROGRAM ETS:

Only for ETS5/ETS6

Downloads

Technical Documentation Date Version Downloads
Datasheet 4 pdf
Manual [2.5]_a pdf
Icon List [2.5]_a pdf
Specific Manuals:
 – Capacitive Touch Switches Manual [1.7]_a pdf
 – Brightness Manual [2.0]_a pdf
 – Proximity and Luminosity Manual [5.0]_a pdf
 – Zennio Thermostat Manual [3.0]_a pdf
 – Humidity Sensor Manual [2.0]_b pdf
 – Temperature Probe Manual [3.0]_a pdf
 – Binary Inputs Manual [2.0]_a pdf
 – Motion Detector Manual [3.0]_a pdf
Available Variants of this series:
