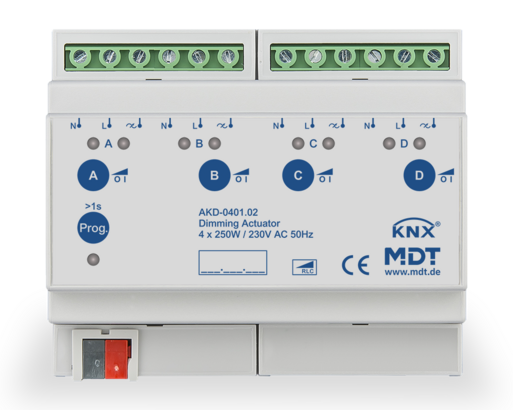

Dimming Actuators AKD

REF: AKD-0X01.02 Categorias: , , Etiquetas: , ,
Description

The MDT Dimming Actuator AKD is optimised for dimmable 230 V LED lamps. Extensive setting parameters offer, for example, the option of dimming the light depending on the time of day or (depending on the location) according to the astronomical sunrise and sunset. Separate parameters for each channel and load type ensure the best possible dimming behaviour of the connected lamps. Comprehensive application. Optimized for dimmable LED lights > 2 W. For HV-halogen lights and LNV-halogen lights with transformer / EVG. Operation in leading-edge or trailing-edge selectable. Active power measurement. Integrated diagnostic function with plain text message. Overload- / short circuit- and temperature protection with message. Time functions (switch-on / switch-off delay, staircase light function). Automatic time dependent dimming. Softstart, global and individual dimming speed. Day / Night function. Parallel operation of 2 channels with 500 W total power output. Push Button for manual operation and indicator for each channel. Separate L- / N connections for each channel (different phases possible L1, L2, L3). Production in Germany, certified according to ISO 9001. 3 year warranty.

Installation Type: MDRC.

Channels: 2-fold, 4-fold.

Active Power Measurement: Yes.

Led: Yes.

V230: Yes.

Power: 250 W.

Device width: 3SU, 6SU.

Downloads

Technical Documentation Date Version Downloads
Device Configuration App (DCA) ETS5/6 From ETS5.7.x 07/23 V5.1.2.1 etsapp
Productdatabase ETS4/5/6 05/22 V2.2b knxprod
Functional overview pdf
Datasheet pdf
Assembly and operational instructions pdf
Technical manual pdf
Tender texts Link
CAD-drawing zip
Available Variants of this series:

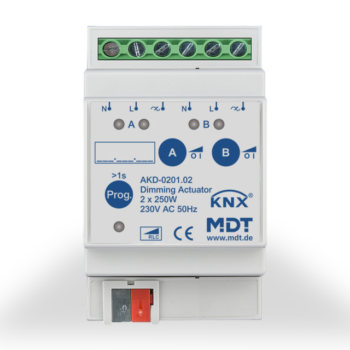

Dimming Actuators AKD
Channels: 2-fold; Device width: 3SU

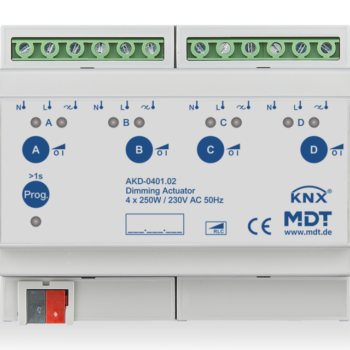

Dimming Actuators AKD
Channels: 4-fold; Device width: 6SU
