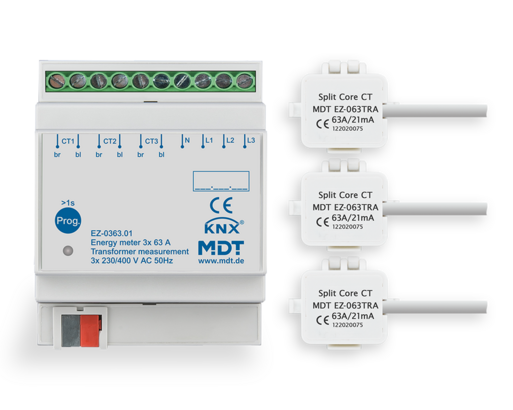

Energy Meter EZ with transformer measurement | 3 Folds 63 A / 4TE REG / 230/400 V AC


The MDT Energy Meter EZ measures both energy consumption and energy generation (from a photovoltaic system, for example). Aside from simple current and active power measurement, it counts the consumption costs and yields of the generated energy via main and intermediate meters. Production in Engelskirchen, certified according to ISO 9001. 3-phase bidirectional meter for active energy. Energy meter for single-phase or three-phase circuits. 3 cable conversion current transformers 63 A for easy folding installation included in the scope of delivery. Measurement of active/reactive and apparent power, voltage, current and power factor cos phi (When measuring energy consumption). Separate recording of energy consumption and injected energy (kWh). Integrated True RMS current measurement (amperage, kW). Current measurement range 30 mA to 63 A. Threshold switch (byte / 2 byte / 2 byte float). Main and intermediate meter. 4 mm² / 2 x 2.5 mm² connection terminals.Fast application download (long frame support from ETS 5). Modular device for 35 mm top hat rail. Integrated bus coupler. 3 years product warranty.

Installation Type: MDRC.

Application Area: Industry.

Channels: 3-fold.

Current Measurement: Yes.

Device width: 4SU.


Technical Documentation Date Version Downloads
Productdatabase ETS5/6 07/22 V1.0 knxprod
Functional overview pdf
Datasheet pdf
Assembly and operational instructions pdf
Technical manual pdf
Tender texts Link
CAD-drawing zip
Available Variants of this series:
