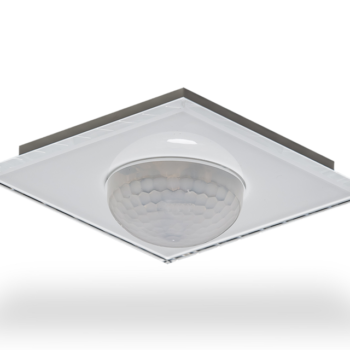

Glass Presence Detector | Ceiling

REF: SCN-G360X3.03 Categorias: , , Etiquetas: , , , , , ,
Description

The MDT Glass Presence Detector is available in two versions. 3 pyro sensors and a high-resolution lens detect even the smallest movements. Upgraded application. White glass front, integrated temperature sensor. 3 pyro detectors with lens for presence detection. Adjustable trigger and presence sensitivity for day, night and alarm. Coverage 11 m Ø, presence 5 m Ø. Up to 4 light channels, sensors can be evaluated individually. HVAC and alarm / notification channel. Short-term presence to reduce the follow-up time. Intelligent switching function for automatic / manual operation. Lock and forced guidance function. Extensive day / night function with second switch object. Integrated white LED night light. Orientation light function for leaving the room. Avoidance of false reports for the alarm channel by reducing the sensitivity and adjustable observation window. Production in Germany, certified according to ISO 9001. 3 year warranty.

Feature: Motion Detector.

Colour: White.

Temperature Sensor: Yes.

Mounting: Ceiling.

Sensors: 3.

Hkl Channel: Yes.

Reach: 11 m.

Constant Light Control: Yes, No.

Max. Range (Ø) Presence: 5 m.

Downloads

Technical Documentation Date Version Downloads
Productdatabase ETS4/5/6 08/23 V4.4b knxprod
Device Configuration App (DCA) ETS5/6 From ETS5.7.x 01/23 V5.1.1.0 etsapp
Datasheet pdf
Assembly and operational instructions pdf
Technical manual 07/23 V1.2 pdf
Tender texts Link
Available Variants of this series:
Glass Presence Detector | Ceiling
Constant Light Control: Yes
Glass Presence Detector | Ceiling
Temperature Sensor: No
