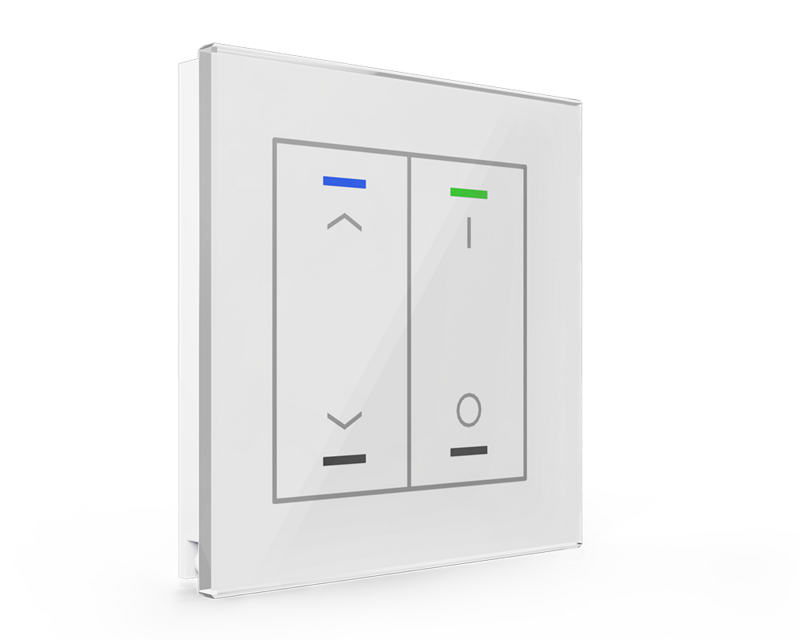

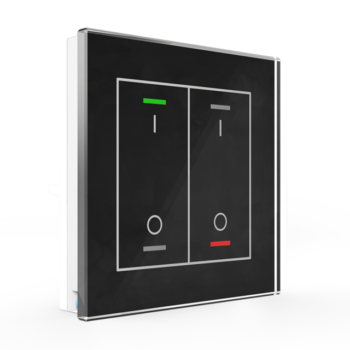

Depending on its parameterization the MDT Glass Push-button II Lite releases KNX telegrams. The sensor areas can be programmed for 1 or 2 button operation (BE-GTL4xx.01: 4 single sensor buttons). The RGBW status LEDs can be controlled with internal or external objects. The LED brightness is controllable via day / night or brightness object. In addition to switching, dimming, blinds, scenes or sending values, a lot more functions are available. The Glass Push-button II Lite has 4 integrated logic blocks and an slap function with additional switch channel. Comprehensive application. New multi-touch function, sends up to 4 values / DPTs on the same or different objects. Innovative group control with long / extra long button press. 1 and 2 button operation for switching, dimming, shutters, values. Changing of values / scenes with up to 4 values. Operation with short / long button push and 2 objects. Slap function with additional switch channel. Two RGBW status LEDs per button pair. LED brightness controllable via day / night or brightness object. 4 logic blocks. Installation in an installation box. Dimensions (W x H): 92 mm x 92 mm. Integrated bus coupling unit. Production in Germany, certified according to ISO 9001. 3 year warranty.
Colour: White, Black.
Functional Areas: 1-fold, 2-fold, 4-fold.
Status Display: Yes.
Temperature Sensor: No, Yes.
Slap function: Yes.
Assortment: free installation.
Engraving: neutral, UP/DOWN Symbol, I/O Symbol, Up/Down Symbol and I/O Symbol, I/O and Up/Down Symbol
| Technical Documentation | Date | Version | Downloads |
| Device Configuration App (DCA) ETS5/6 From ETS5.7.x | 07/23 | V5.1.2.1 | etsapp |
| Productdatabase ETS4/5/6 | 05/22 | V1.3c | knxprod |
| Assembly and operational instructions | |||
| Datasheet | |||
| Technical manual | |||
| Tender texts | Link | ||

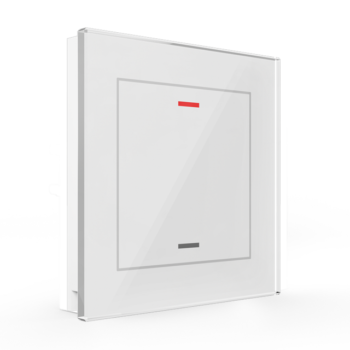

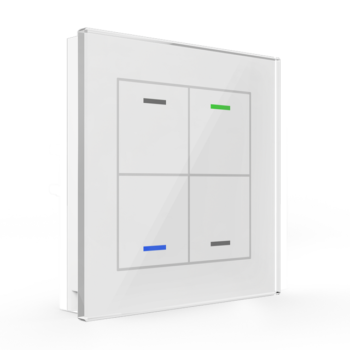

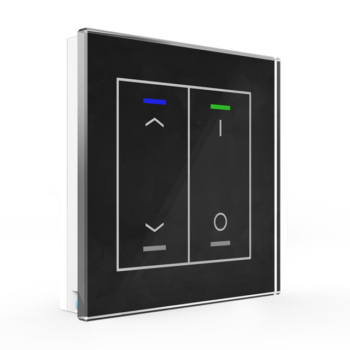

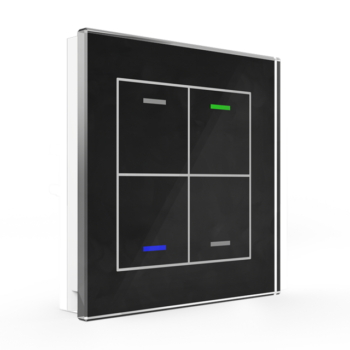

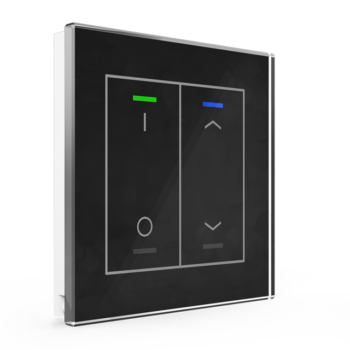

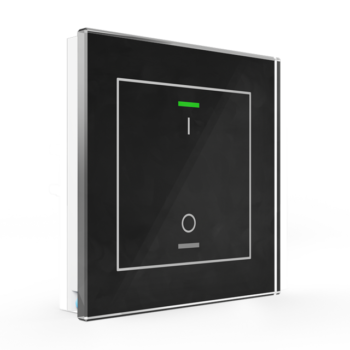

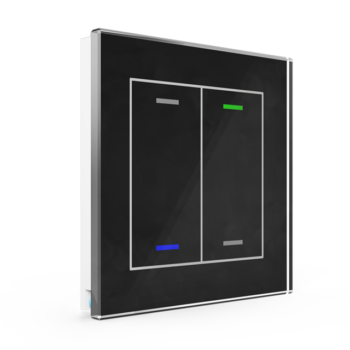

| Variants | BE-GTL10W.01, BE-GTL1TW.01, BE-GTL10W.A1, BE-GTL1TW.B1, BE-GTL10S.01, BE-GTL1TS.01, BE-GTL10S.A1, BE-GTL1TS.B1, BE-GTL20W.01, BE-GTL2TW.01, BE-GTL20W.A1, BE-GTL2TW.B1, BE-GTL2TW.C1, BE-GTL2TW.D1, BE-GTL20S.01, BE-GTL2TS.01, BE-GTL20S.A1, BE-GTL2TS.B1, BE-GTL2TS.C1, BE-GTL2TS.D1, BE-GTL40W.01, BE-GTL4TW.01, BE-GTL40S.01, BE-GTL4TS.01 |
|---|---|
| Brands | MDT |
