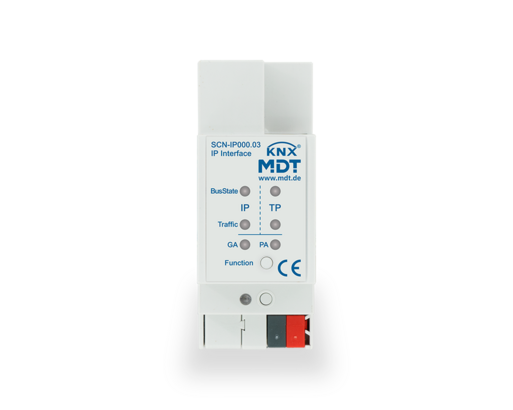

IP Interface | With IP Secure and Data Secure / 4 simultaneous connections possible

REF: SCN-IP000.03 Categorias: , , Etiquetas: , , ,
Description

The IP Interface enables the communication between the PC and the KNX / EIB system via LAN. The KNX IP Interface allows to programm the KNX bus via TCP / IP, 4 simultaneous connections possible. To enable communication between PC and the KNX bus TCP / IP. 4 simultaneous connections possible. Programming the KNX bus via TCP / IP. Power supply by KNX bus, no external bus power supply required. Encrypted transmission for sending emails. Time server functions to send time and date on the KNX bus. Firmware can be updated. Supports extended group addresses. KNX IP Secure and KNX Data Secure (from ETS 5.7). Secure access to the KNX bus through IP Secure with security key. Quick application download (long frame support with ETS 5 or higher). Integrated bus coupling unit. Production in Germany, certified according to ISO 9001. 3 year warranty.

Installation Type: MDRC.

Device width: 2SU.

Downloads

Technical Documentation Date Version Downloads
Productdatabase ETS5/6 From ETS 5.7.2 using the KNX Data Secure function 02/22 V2.1a knxprod
Productdatabase ETS5/6 From ETS 5.7.2, Email function with using the KNX Secure function 04/23 V2.0c knxprod
Productdatabase ETS5/6 Without using the KNX Secure function 05/19 V1.1b knxprod
Productdatabase ETS4/5/6 E-Mail function without using the KNX Secure function 05/19 V1.0c knxprod
Firmwareupdates hex
Manual for firmware update pdf
Datasheet pdf
Assembly and operational instructions pdf
Technical manual pdf
Tender texts Link
CAD-drawing zip
Available Variants of this series:
