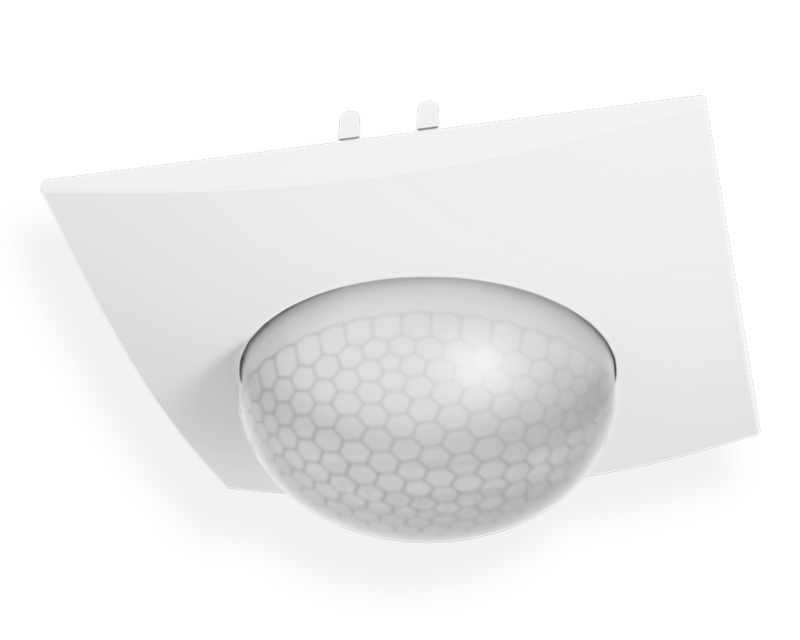

KNX Presence Detector 360° | With 3 sensors

REF: SCN-P360XX.03 Categorias: , , Etiquetas: , , , , ,
Description

The MDT Presence Detector is available in several versions. Up to 4 pyro sensors and a high-resolution lens detect even the smallest movements. Upgraded application. 3 or 4 pyro detectors with lens for presence detection. Adjustable trigger and presence sensitivity for day, night and alarm. Coverage 11 m Ø, presence 5 m Ø. Up to 4 light channels, sensors can be evaluated individually. HVAC and alarm / notification channel. Short-term presence to reduce the follow-up time. Intelligent switching function for automatic / manual operation. Lock and forced guidance function. Extensive day / night function with second switch object. Integrated white LED night light. Orientation light function for leaving the room. Avoidance of false reports for the alarm channel by reducing the sensitivity and adjustable observation window. Production in Germany, certified according to ISO 9001. 3 year warranty.

Feature: Sensor.

Colour: White.

Mounting: Ceiling.

Assortment: free installation.

Sensors: 3, 4.

Hkl Channel: Yes.

Reach: 11 m, 16 m.

Constant Light Control: No, Yes.

Max. Range (Ø) Presence: 5 m, 8 m.

Accessories for Presence detector: Mounting frame Slimline for SCN-P360x3.03, Mounting frame Slimline for SCN-P360x4.03.

Downloads

Technical Documentation Date Version Downloads
Device Configuration App (DCA) ETS5/6 From ETS5.7.x 07/23 V5.1.2.1 etsapp
Productdatabase ETS4/5/6 08/23 V4.4b knxprod
Functional overview pdf
Datasheet pdf
Assembly and operational instructions Presence Detector with 3 sensors pdf
Assembly and operational instructions Presence Detector with 4 sensors pdf
Technical manual 07/23 V1.2 pdf
Tender texts Link
Available Variants of this series:
KNX Presence Detector 360° | With 3 sensors
Sensors: 3: Reach: 11 m; Constant Light Control: No; Max. Range (Ø) Presence: 5 m
KNX Presence Detector 360° | With 3 sensors
Sensors: 3; Reach: 11 m; Constant Light Control: Yes; Max. Range (Ø) Presence: 5 m
KNX Presence Detector 360° | With 3 sensors
Sensors: 4; Reach: 16 m; Constant Light Control: No; Max. Range (Ø) Presence:
KNX Presence Detector 360° | With 3 sensors
Sensors: 4; Reach: 16 m; Constant Light Control: Yes; Max. Range (Ø) Presence: 8 m
