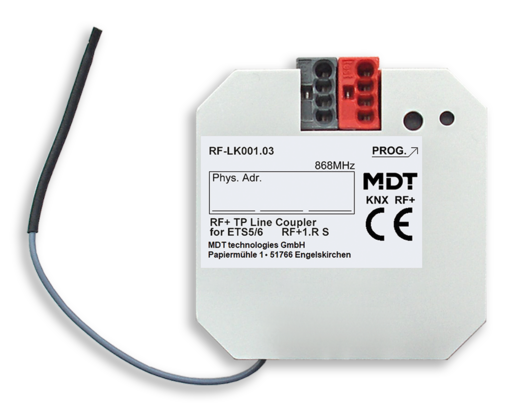

KNX RF+ Line Coupler | Floush mounted

REF: RF-LK001.03 Categorias: , , Etiquetas: , , , , ,
Description

The MDT KNX RF+ Line Coupler connects MDT KNX RF+ devices to the KNX bus. The Line Coupler offers extensive filter functions to reduce the KNX RF+ bus load. For operating inside the EU, 868 MHz. KNX RF+ line coupler to connect MDT KNX RF+ devices like MDT Push Button RF+ or MDT Glass Push Button RF+. New KNX RF+ protocol in system mode. Segment coupler functionality (ETS6). Commissioning with ETS5 / 6. Compatible to the new KNX RF+ specification. Filter functions to reduce bus load. Flush mounted in an Installation box. Dimensions (W x H x D): 41 mm x 41 mm x 22 mm. Integrated bus coupling unit. 3 year warranty.

Installation Type: Flush-mounted.

Medium: KNX RF S-Mode.

Downloads

Technical Documentation Date Version Downloads
Productdatabase ETS6 For ETS 6, with segment coupler functionality 08/23 V2.3 knxprod
Productdatabase ETS5 For ETS 5 08/23 V1.2 knxprod
Datasheet 08/23 pdf
Assembly and operational instructions 08/23 pdf
Technical manual 08/23 V1.0 pdf
Available Variants of this series:
