Additional information
| Variants | RF-TA55A2.01, RF-TA55A4.01, RF-TA55A6.01, RF-TA55A8.01 |
|---|---|
| Brands | MDT |
Description

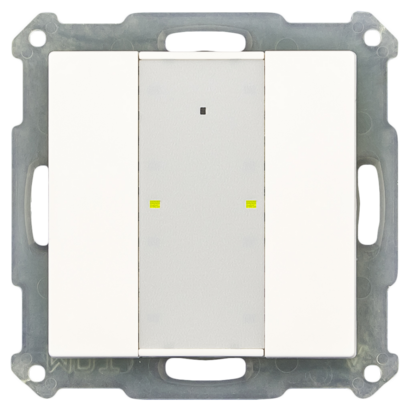

The MDT KNX Push-button Plus releases KNX telegrams after pushing the buttons on top. KNX RF+ protocol in system mode. Commisioning with ETS 5 or higher. For operation inside the EU, 868 MHz. Fits 55 mm systems. Push Buttons can be programmed for 1 or 2 button operation. NO or NC contact operation, operational time of push button adjustable. Forced setting function for each output. Operation with short / long button push and 2 objects. 2 integrated logical modules. Operation of blinds and shutters, 1 and 2 button operation. 2-fold switching actuator or 1-fold shutter actuator (RF-TA55XA.01). Connection via MDT KNX RF+ Line Coupler. Centered text area for individual description. To replace conventionel push-buttons. To upgrade you installation without installing KNX bus cables. Power supply 230 V AC. Integrated bus coupling unit, installation with enclosed support ring. Production in Germany, certified according to ISO 9001. 3 year warranty.
C Load: 14µF.
Ampere: 10 A.
Led: Yes.
Colour: Pure white gloss.
Functional Areas: 2-fold, 4-fold, 6-fold, 8-fold.
Downloads
| Technical Documentation | Date | Version | Downloads |
| Productdatabase ETS5/6 from ETS5.7x | 03/22 | V1.0a | knxprod |
| Productdatabase ETS5/6 Only for 4-fold Push Button. From ETS5.7x | 10/22 | V1.1 | knxprod |
| Datasheet | |||
| Assembly and operational instructions | |||
| Technical manual | |||
| Print template Requires Adobe Acrobat Reader | zip | ||
| Technical Information KNX RF | |||
| Tender texts | Link | ||
Available Variants of this series:

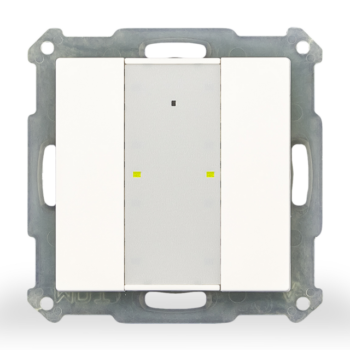

KNX RF+ Push-button Plus - RF-TA55A2.01
Functional Areas: 2-fold
KNX RF+ Push-button Plus - RF-TA55A4.01
Functional Areas: 4-fold

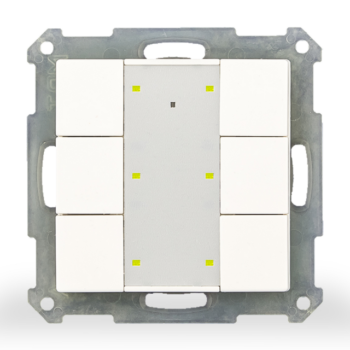

KNX RF+ Push-button Plus - RF-TA55A6.01
Functional Areas: 6-fold
