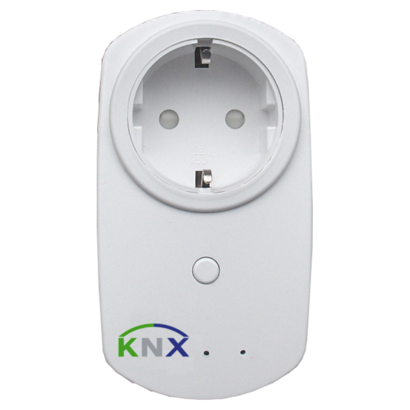

KNX RF+ Socket

REF: RF-AXK1ST.01 Categorias: , , Etiquetas: , , ,
Description

The MDT KNX RF+ Socket receives KNX / EIB telegrams and switches one electrical load. KNX RF+ protocol in system mode. Commissioning with ETS 5 or higher. For operation inside the EU, 868 MHz. NO and NC contact operation. Time functions (switch-on / switch-off delay, staircase light function). Status response (active / passive) for each channel. Logical linking of binary data. 8 scenes per channel. Central switching functions and block functions. Connection via MDT KNX RF+ Line Coupler. Production in Germany, certified according to ISO 9001. 3 year warranty.

Ampere: 16 A.

Active Power Measurement: No, Yes.

V230: Yes.

Downloads

Technical Documentation Date Version Downloads
Productdatabase ETS5/6 from ETS5.7x 02/17 V1.0 knxprod
Datasheet pdf
Assembly and operational instructions pdf
Technical manual pdf
Technical Information KNX RF pdf
Tender texts Link
Available Variants of this series:

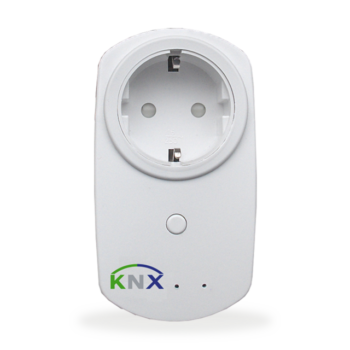

KNX RF+ Socket
Active Power Measurement: Yes
KNX RF+ Socket
Active Power Measurement: No
