Shutter Actuators JAL | With Traveltime measurement 230 V

REF: JAL-0X10M.02 Categorias: , Etiquetas: , , , , , ,
Description

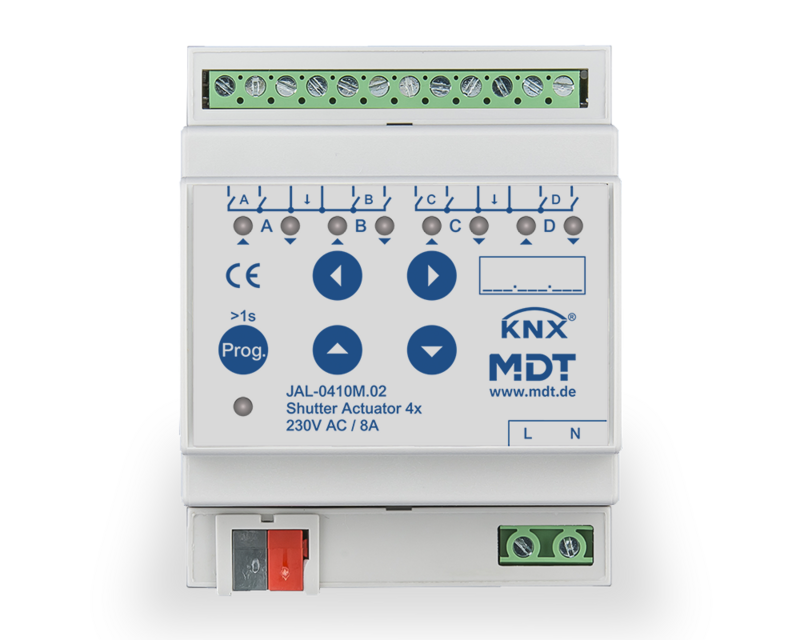

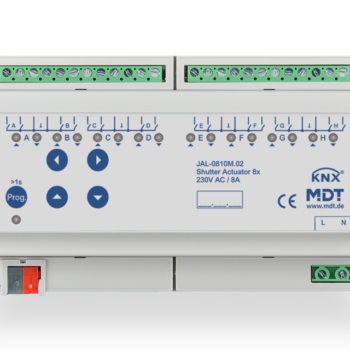

The Shutter Actuator JAL comes with a number of additional functions and can do more than just move the blind or roller shutter up and down. The automatic travel time measurement (JAL-0x10M.02) makes commissioning much easier and saves valuable time. Comprehensive application. With travel time measurement (JAL-0x10M.02 only). Lockable manual operation and LED indicator for each channel. Operation mode blind / shutter. Practical ventilation function (window open / tilt). Travel-, pause at change of direction, step time adjustable. Separate travel time for up and down adjustable. Tip operation for accurate positioning. Extended 1 Bit automatic positions and scene functions. 1 Byte absolute positioning for shutter and blinds. Alarm, central- and block functions. Behavior after alarms and blocking separately configurably. Priority / forced operation with automatic release time. Two contacts share one L-connection (MDRC device). Common L-connection (flush-mounted device). Quick application download (long frame support with ETS 5 or higher). Production in Germany, certified according to ISO 9001. 3 year warranty.

Installation Type: MDRC.

Channels: 4-fold, 8-fold.

Ampere: 8 A.

Jalousiemotor: 230 V.

Watts: 300 W.

Traveltime Measurement: Yes.

Device width: 4SU, 8SU.

*For shutter actuators with travel time measurement (ab ETS5.7.x).

You can find a product comparison of our shutter actuators here.

Downloads

Technical Documentation Date Version Downloads
Device Configuration App (DCA) ETS5/6
From ETS5.7.x
07/23 V5.1.2.1 etsapp
Productdatabase ETS5/6 for shutter actuators with travel time measurement (from ETS5.7.x) 02/21 V4.3a knxprod
Functional overview For Shutter Actuators with travel time measurement (from ETS5.7.x) 06/22 pdf
Datasheet pdf
Assembly and operational instructions pdf
Technical manual for shutter actuators with travel time measurement (from ETS5.7.x) pdf
Tender texts Link
CAD-drawing zip
Available Variants of this series:
Shutter Actuators JAL | With Traveltime measurement 230 V
Channels: 4-fold; Device width: 4SU
Shutter Actuators JAL | With Traveltime measurement 230 V
Channels: 8-fold; Device width: 8SU
