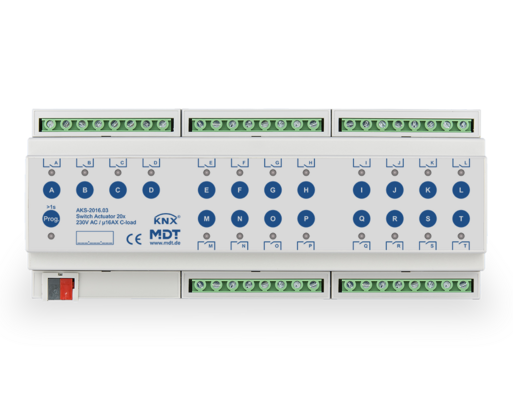

Switch Actuator AKS Standard 16 A | 230 V AC

REF: AKS-XX16.03 Categorias: , Etiquetas: , , , , ,
Description

The standard version of the MDT Switch Actuator AKS 16 A comes with a wide range of functions for medium to large loads and offers more channels with a smaller space requirement. This saves costs per channel and for the sub-distribution. The actuator is equipped with bistable relays for currents up to 16 A and high C-loads of up to 140 µF. Each channel can be switched directly on the actuator via a button. Space saving design. Comprehensive application. Lockable manual operation and LED indicator for each channel. NO and NC contact operation. Status response with manual operation. Time functions (switch-on / switch-off delay, staircase light function). Extended logic and scene functions for each channel. Extended status functions (inverted, cyclic, with lock). Threshold switch (Byte / 2 Byte / 2 Byte float). Hour meter for switching. Priority / forced operation with automatic release time. 4 mm2 / 2 x 2.5 mm² screw terminals. Separate supply phases. Quick application download (long frame support with ETS 5 or higher). Production in Germany, certified according to ISO 9001. 3 year warranty.

Installation Type: MDRC.

Application Area: Standard.

Channels: 2-fold, 4-fold, 8-fold, 12-fold, 16-fold, 20-fold, 24-fold.

C Load: 140 µF C-Load.

Ampere: 16 A.

Device width: 2SU, 4SU, 6SU, 8SU, 12SU.

*Database for 24-fold switching actuator is only available for ETS5.

You can find a product comparison of our switch actuators here.

Downloads

Technical Documentation Date Version Downloads
Productdatabase ETS5/6 From ETS5.7.x 12/22 V3.2d knxprod
Productdatabase ETS4 / ETS product data for 2-fold Switch Actuator & 24-fold / Switch Actuator is available for ETS 5/6 only 04/21 V3.2b knxprod
Datasheet pdf
Assembly and operational instructions pdf
Technical manual pdf
Tender texts Link
CAD-drawing zip
