Switch Actuators AMS with current measurement | Series .03

REF: AMS-XX16.03 Categorias: , Etiquetas: , , , ,
Description

The standard version of the MDT Switch Actuator AMS 16 A with current measurement reliably measures the currents per channel with up to 16 amperes. This makes it possible, for example, to monitor load overshoot and load undershoot. The current measurement per channel can be taken into account in a total current measurement. Comprehensive application. Integrated True RMS current measurement (current, kWh). Current measurement range 10 mA to 16 A. Integrated energy consumption meter function (Wh/kWh). Fast reaction <1s at Master / Slave operation. Push Button for manual operation and LED indicator for each channel. Time functions (switch-on / switch-off delay, staircase light function). Threshold switch function and Consumption threshold value. Logical linking of binary data, 8 scenes per channel. Operating hours meter. Extended status functions (inverted, cyclic, when locked). Priority / forced operation with automatic release time. Adjustable behaviour on bus voltage failure / -return. All L-connections separated, 4 mm² / 2 x 2,5 mm² connection terminals. 3 years warranty. Made in Germany.

Installation Type: MDRC.

Application Area: Standard.

Channels: 4-fold, 8-fold, 12-fold.

C Load: 140 µF C-Load.

Ampere: 16 A.

Current Measurement: Yes.

V230: Yes.

Execution: 230 V.

Device width: 4SU, 8SU, 12SU.

You can find a product comparison of our switch actuators here.

Downloads

Technical Documentation Date Version Downloads
Productdatabase ETS5/6 From ETS5.7x 04/23 V3.0 knxprod
Functional overview pdf
Datasheet 04/23 pdf
Assembly and operational instructions 04/23 pdf
Technical manual 04/23 pdf
Tender texts Link
CAD-drawing zip
Available Variants of this series:
Switch Actuators AMS with current measurement | Series .03

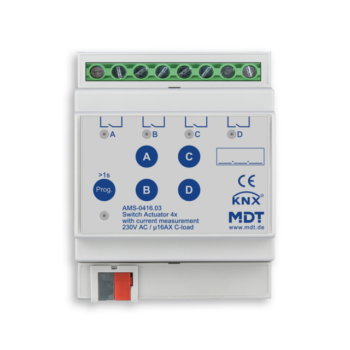

Channels: 4-fold; Device width: 4SU
Switch Actuators AMS with current measurement | Series .03

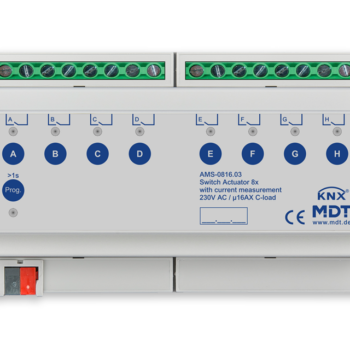

Channels: 8-fold; Device width: 8SU
Switch Actuators AMS with current measurement | Series .03

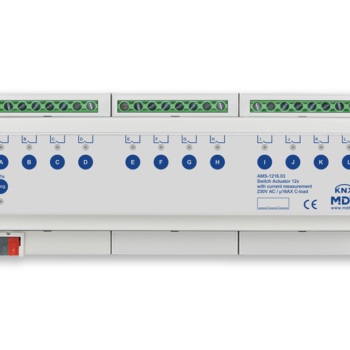

Channels: 12-fold; Device width: 12SU
