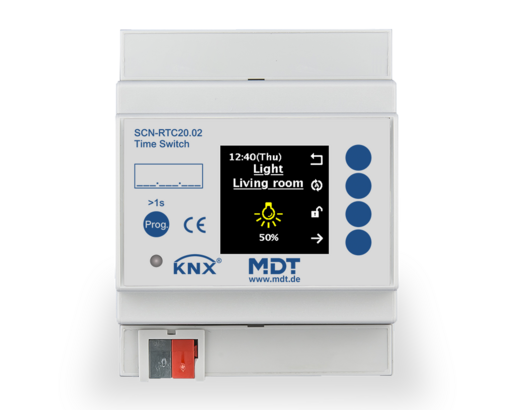

KNX Time Switch | 20 channels with a daily/weekly/astro switching function and an adequate power reserve

REF: SCN-RTC20.02 Categorias: , , Etiquetas: , , , ,
Description

The MDT Time Switch with 20 channels (8 cycle times for each channel) has a daily- / weekly- / astro switching function and an adequate power reserve if the bus voltage fails. The cycle times of the single channels are adjustable by the ETS or can be set directly at the device. The large active color display for comfortable handling allows direct switching of the 20 channels (manual mode). Time Switch with 20 channels (8 switch times for each channel). Switching times adjustable via ETS and on the device. Day- / week- / astro switching function, power reserve. Automatic holiday calculation. Output objects for date / time (master). Date / time adjustable via bus (slave). Special channel for day / night function. Control of height and slat for blind function per channel. Output objects for azimuth and elevation angle. Protection against unauthorized access by code lock function. Switching time repetition adjustable per channel. Cyclic transmission in normal mode. Threshold comparator from 1-4 bytes. 8 logic blocks with 4 inputs each. Production certified according to ISO 9001. 3 year product warranty.

Installation Type: MDRC.

Channels: 20-fold.

Integrated Timer: Yes.

Device width: 4SU.

Downloads

Technical Documentation Date Version Downloads
Device Configuration App (DCA) ETS5/6 From ETS5.7.x 07/23 V5.1.2.1 etsapp
Productdatabase ETS5/6 05/23 V2.1 knxprod
Functional overview pdf
Datasheet pdf
Assembly and operational instructions pdf
Tender texts Link
