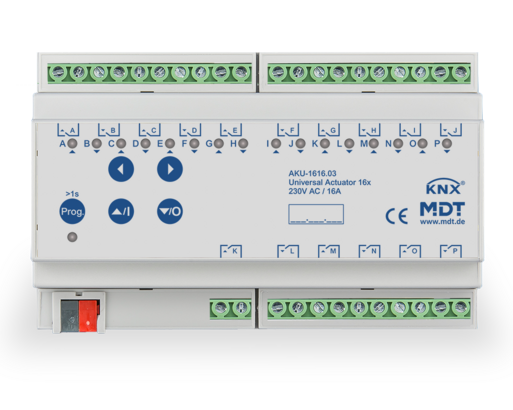

Universal Actuators AKU | 230 V AC / 15 ECG

Description

The MDT Universal Actuator AKU 16 A can be used in a variety of ways: As a switch actuator with various functions, as a shutter actuator with automatic shading function or as a heating actuator. The versatile application offers full functionality in all three areas, whereby mixed operation of the functions is possible. Comprehensive function extension. Can be used as a Switch Actuator (max. 24-fold) or Shutter Actuator (max. 12-fold). Mixed use of Switch and Shutter Actuators possible. Heating control with PWM 0-100 %. Push Button and LED indicator for each channel. Automatic sun shading / slat adjustment with sun position calculation. Practical ventilation function (window open / tilt). Time functions (switch-on / switch-off delay, staircase light function). Status response (active / passive) for each channel. Logical linking of binary data, 8 scenes per channel. Central switching functions and blocking for forced operation. Operation mode blind / shutter adjustable. Travel-, pause at change of direction, and step time adjustable. 1Bit automatic function and sun protection. 8Bit positioning for shutter and blinds. Ventilation function (window opened / tilt). Adjustable behavior in case of bus voltage failure or return. 4 mm² / 2 x 2.5 mm² screw terminals. Separate supply phases. Quick application download (long frame support with ETS 5 or higher). Production in Germany, certified according to ISO 9001. 3 year warranty.

Installation Type: MDRC.

Channels: 4-fold, 6-fold, 8-fold, 16-fold, 24-fold.

C Load: 100µF.

Ampere: 16 A.

Sun position Calculation: Yes.

Device width: 4SU, 8SU, 12SU.

You can find a product comparison of our shutter actuators here.

Downloads

Technical Documentation Date Version Downloads
Device Configuration App (DCA) ETS5/6 From ETS5.7.x 07/23 V5.1.2.1 etsapp
Productdatabase ETS5/6 From ETS5.7x 12/21 V4.1a knxprod
Functional overview pdf
Datasheet pdf
Assembly and operational instructions pdf
Tender texts Link
CAD-drawing zip
Available Variants of this series:
Universal Actuators AKU | 230 V AC / 15 ECG
Channels: 4-fold; Device width: 4SU
Universal Actuators AKU | 230 V AC / 15 ECG
Channels: 6-fold; Device width: 4SU
Universal Actuators AKU | 230 V AC / 15 ECG
Channels: 8-fold; Device width: 4SU
Universal Actuators AKU | 230 V AC / 15 ECG
Channels: 16-fold; Device width: 8SU
Universal Actuators AKU | 230 V AC / 15 ECG
Channels: 24-fold; Device width: 12SU
