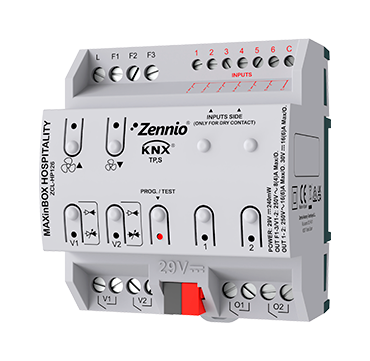

MAXinBOX Hospitality | Fan coil controller for 2/4-pipe unit with 2 16A C-load outputs and 6 a/d inputs


Fan coil controller for 2 or 4-pipes unit with 2-points valves or 3-points valve and up to three fan speeds, for DIN-rail (4.5 units). It includes 2 independent outputs 16 A C-Load, which can be configured as individual outputs or as a shutter channel. Moreover, it has 6 analog-digital multifunction inputs that can be configured as binary inputs for sensors and potential-free push buttons, as temperature probe inputs or as motion sensor inputs. It includes Master Light function, 10 logical functions and allows manual control of the outputs with status indication through LEDs.

Accessories: temperature probe and motion sensor.


Only for ETS5/ETS6


Technical Documentation Date Version Downloads
Datasheet 9 pdf
Manual [2.3]_a pdf
Specific Manuals:
 – ’Relays’ Fan Coil Manual [1.1]_a pdf
 – Temperature Probe Manual [1.0]_a pdf
 – Binary Inputs Manual [0.3]_a pdf
 – Motion Detector Manual [0.3]_a pdf
 – Individual Binary Outputs Manual [0.3]_a pdf
 – Shutter Channels Manual [0.2]_a pdf
 – Logical Functions Manual [0.3]_a pdf
Available Variants of this series:
