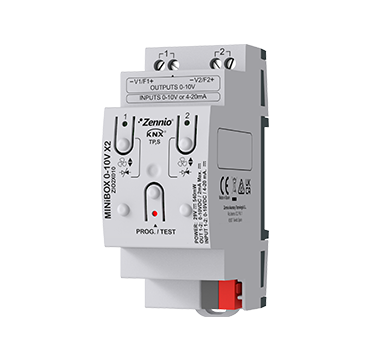

MINiBOX 0-10V X2 | 2 fold 0-10V analog input/output multifunction module

Description

DIN rail mounting actuator (2 DIN wide) with 2 channels configurable as 0-10 V outputs, 0-10 V inputs or 4-20 mA inputs. Each channel can be configured individually or jointly to control a 2-pipe fan coil where both fan and valve are controlled with 0-10 V signals.

Manual control is available using the push buttons and each channel’s status is shown via the LED indicator.

It includes 10 logic functions and 2 thermostats.

APPLICATION PROGRAM ETS:

Only for ETS5/ETS6

Downloads

Technical Documentation Date Version Downloads
Datasheet 2 pdf
Manual [1.4]_a pdf
Specific Manuals:
 – Analog Inputs Manual [0.2]_a pdf
 – Analog Fan Coil Manual [1.0]_a pdf
 – Analog Outputs Manual [2.0]_a pdf
 – Zennio Thermostat Manual [3.0]_a pdf
 – Logical Functions Manual [3.0]_a pdf
Available Variants of this series:
