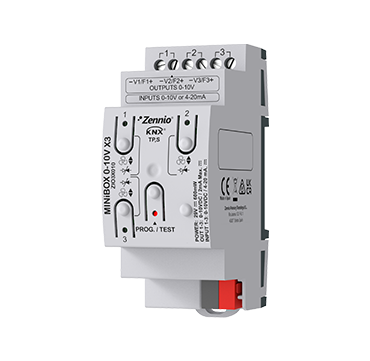

MINiBOX 0-10V X3 | 3 fold 0-10V analog input/output multifunction module


DIN rail mounting actuator (2 DIN wide) with 3 channels configurable as 0-10 V outputs, 0-10 V input or 4-20 mA input. Each channel can be configured individually or jointly to control 2-pipe or 4-pipe fan coils where fan and valves are controlled with 0-10 V signals.
Manual control is available using the push buttons and each channel’s status is shown via the LED indicator.
It includes 10 logic functions and 3 thermostats.


Only for ETS5/ETS6


Technical Documentation Date Version Downloads
Datasheet 2 pdf
Manual [1.4]_a pdf
Specific Manuals:
 – Analog Inputs Manual [0.2]_a pdf
 – Analog Fan Coil Manual [1.0]_a pdf
 – Analog Outputs Manual [2.0]_a pdf
 – Zennio Thermostat Manual [3.0]_a pdf
 – Logical Functions Manual [3.0]_a pdf
Available Variants of this series:
