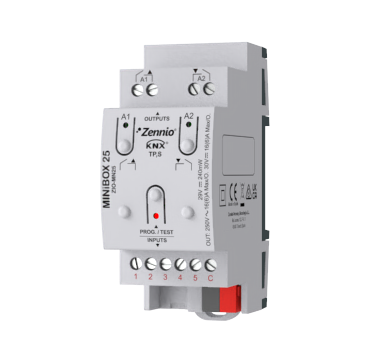

MINiBOX 25 | KNX multifunction actuator – 2 outputs 16A / 5 inputs A/D

Description

Multifunction actuator for DIN rail (2 units) with 2 outputs (16 A C-load) which offers multiple configurations as shutter channels and individual outputs. It allows manual control of its outputs thanks to the push buttons on the cover and includes a logical function module. MINiBOX 25 also incorporates 5 analog-digital inputs that may be configured as binary inputs for sensors and potential-free push buttons, as temperature probe inputs or as motion sensor inputs, as well as four room thermostats to control heating/cooling systems.

APPLICATION PROGRAM ETS:

Only for ETS4/ETS5/ETS6

Downloads

Technical Documentation Date Version Downloads
Datasheet 5 pdf
Manual [1.4]_a pdf
Specific Manuals:
 – Zennio Thermostat Manual [0.2]_b pdf
 – Temperature Probe Manual [0.1]_c pdf
 – Binary inputs Manual [0.3]_a pdf
 – Motion Detector Manual [0.3]_a pdf
 – Individual Binary Outputs Manual [0.1]_b pdf
 – Shutter Channels Manual [0.2]_a pdf
 – Logical Functions Manual [0.3]_a pdf
Available Variants of this series:
