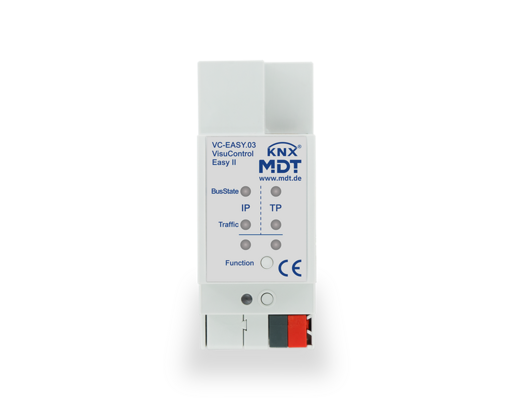

Object server VisuControl Easy II | Up to 200 Functions can be visualised – IP Interface

REF: VC-EASY.03 Categorias: , Etiquetas: , , ,
Description

For visualization of current building states and interactive control of building functions via Android or iOS App. Visu Control for KNX app available free of charge in the Android and iOS store. App suitable for smartphone and tablet with automatic setting of the respective view. Visualisation and operation of lighting, blinds, room temperature, status, Scenes, media data, weather data and more. Up to 200 Functions can be visualised. Individual allocation in rooms, zones, or groups. Separate Status Object. HSV or RGB colour control. Graphical user interface is created automatically. Up to 4 IP cameras per Object server. KNX Secure enabled. Connection to the MDT Time switch. Recording and display of Data in up to 8 diagrams. Integrated VPN support. IP Interface (4 Connections simultaneously, bus programming). E-mail function for sending messages and status reports. Time server for sending date / time to the KNX bus. Logic function for grouped notification. Secure data transfer between the Object server and App. The App supports multiple object servers. Easy configuration with ETS 5 / 6 without extra Software. Power supply via KNX Bus, no external power supply required.

Installation Type: MDRC.

Device width: 2SU.

Downloads

Technical Documentation Date Version Downloads
Productdatabase ETS5/6 08/23 V3.2a knxprod
Firmwareupdates 11/23 V2.0.5 zip
Assembly and operational instructions pdf
Datasheet pdf
Technical manual pdf
Functional overview pdf
Tender texts Link
CAD-drawing zip
Available Variants of this series:
