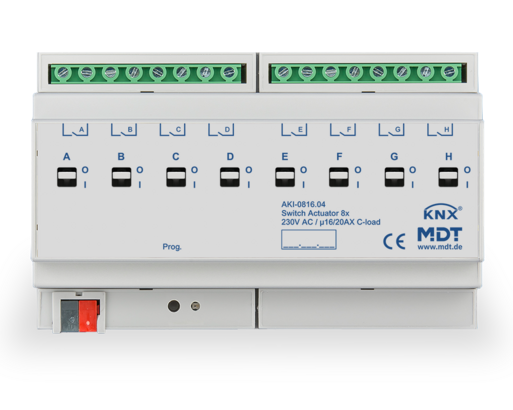

Switch Actuators AKI industry

REF: AKI-XX16.04 Categorias: , Etiquetas: , , , , ,
Description

The industrial version of the MDT Switch Actuator AKI for large to very large loads is used where particularly high inrush currents are to be expected. The actuator is equipped with bistable relays for currents up to 16/20 A and a C-load up to 200 µF. Thanks to mechanical manual operation, they are particularly suitable for sensitive areas. The channels can also be switched without bus voltage and the switching status is visible at all times. Comprehensive function extension. Mechanical manual operation for direct actuation of the relay contact, status visible. NO and NC contact operation. Status response by manual operation. Time functions (switch-on / switch-off delay). Extensive staircase light and impulse functions. Extended logic and scene functions for each channel. Extended status functions (inverted, cyclic, with lock). Threshold switch (Byte / 2 Byte / 2 Byte float). Hour meter for switching. Priority / forced operation with automatic release time. 4 mm² / 2 x 2.5 mm² screw terminals. Separate supply phases. Power supply via KNX bus. Quick application download (long frame support with ETS 5 or higher). Production in Germany, certified according to ISO 9001. 3 year warranty.

Installation Type: MDRC.

Application Area: Industry.

Channels: 4-fold, 8-fold, 12-fold.

C Load: 200 µF C-Load.

Ampere: 16/20 A.

Handcontrol: Yes.

V230: Yes.

Device width: 4SU, 8SU, 12SU.

You can find a product comparison of our switch actuators here.

Downloads

Technical Documentation Date Version Downloads
Device Configuration App (DCA) ETS5/6 From ETS5.7.x 07/23 V5.1.2.1 etsapp
Productdatabase ETS5/6 From ETS5.7x 12/22 V3.2d knxprod
Datasheet pdf
Assembly and operational instructions pdf
Technical manual pdf
Tender texts Link
CAD-drawing zip
Available Variants of this series:

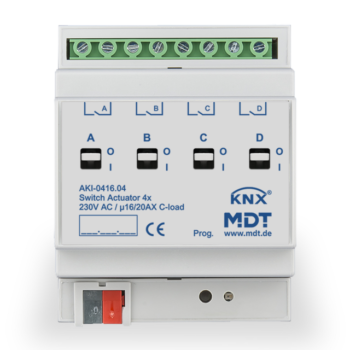

Switch Actuators AKI industry
Channels: 4-fold; Device width: 4SU

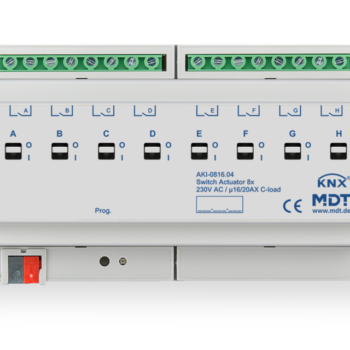

Switch Actuators AKI industry
Channels: 8-fold; Device width: 8SU

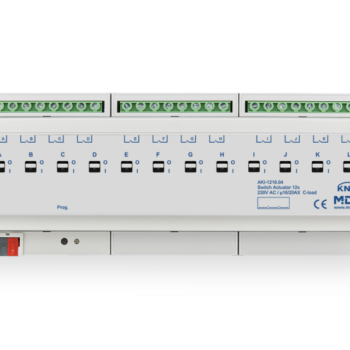

Switch Actuators AKI industry
Channels: 12-fold; Device width: 12SU
