Bus Power Supply STC | KNX power supply with integrated choke and diagnostic function

Description

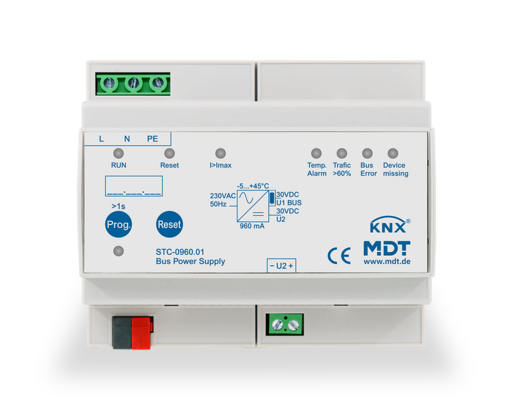

The MDT KNX Power Supply with integrated choke supplies the KNX Bus with a constant, stabilized 30 V DC voltage. The integrated bus coupling unit with diagnostic function monitors the bus voltage, bus current, bus overload and bus voltage failure / return. All events are stored with time stamp in the internal ring buffer. The current operating status is indicated via 8 colored LED on top of the device. KNX power supply with integrated choke. Mains voltage 230 V AC. Short-circuit-proof. Overload safe. With additionally choke free output. Modular installation device for DIN 35 mm rails. Integrated bus coupling unit. Production in Germany, certified according to ISO 9001. 3 year warranty.

Integrated bus coupling unit with diagnostic function:
– Bus voltage, bus current, bus overload;
– Bus voltage failure / return;
– All events are stored with time stamp in a ring buffer;
– Read out of the ring buffer by 14 Byte telegram;
– Safety functions to detect a failed device in the KNX line.

Installation Type: MDRC.

Supply Voltage: 640mA, 960mA, 1280mA.

Diagnostic Function: Yes.

Device width: 4SU, 6SU.

Downloads

Technical Documentation Date Version Downloads
Productdatabase ETS4/5/6 02/17 V1.1a knxprod
Datasheet pdf
Assembly and operational instructions pdf
Tender texts Link
CAD-drawing zip
Available Variants of this series:
Bus Power Supply STC | KNX power supply with integrated choke and diagnostic function
Supply Voltage: 640mA; Device width: 4SU
Bus Power Supply STC | KNX power supply with integrated choke and diagnostic function
Supply Voltage: 960mA; Device width: 6SU
Bus Power Supply STC | KNX power supply with integrated choke and diagnostic function
Supply Voltage: 1280mA; Device width: 6SU
