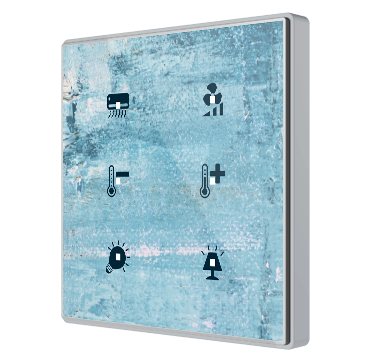

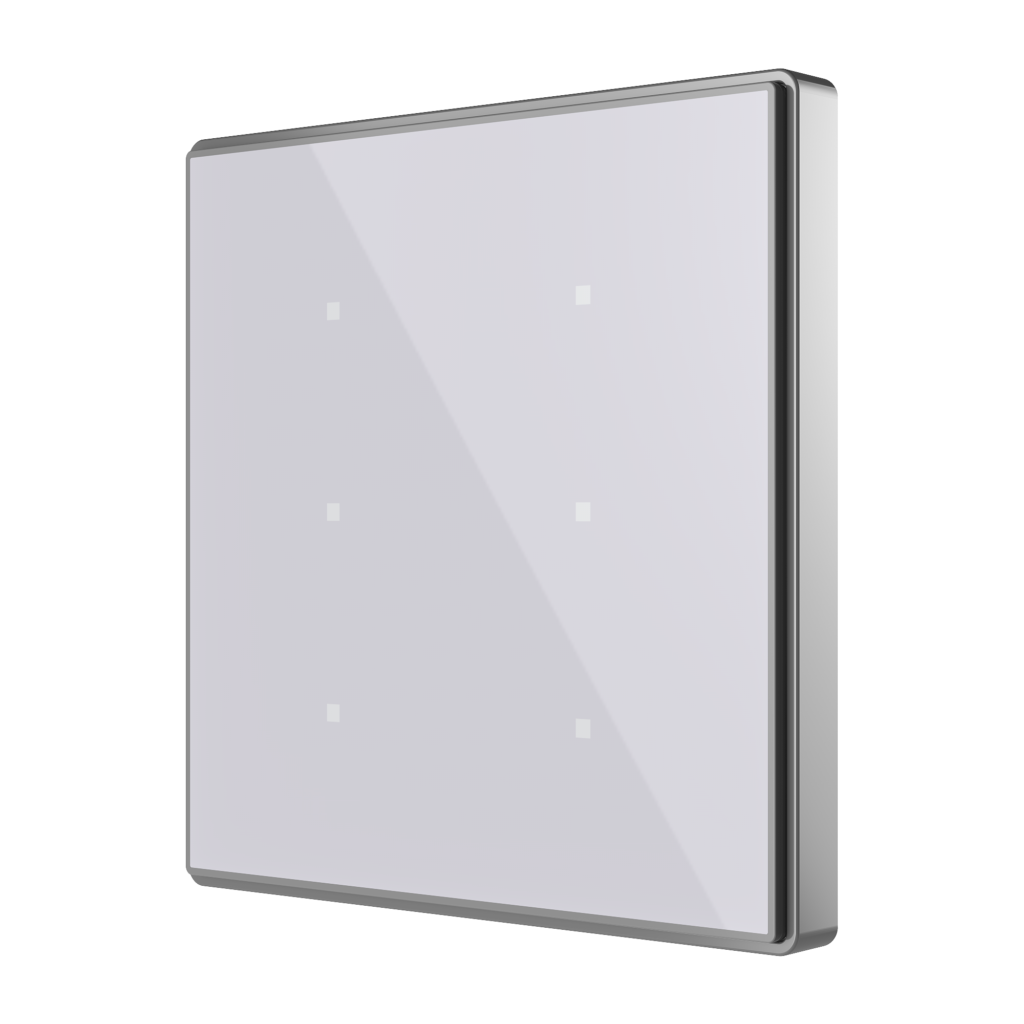

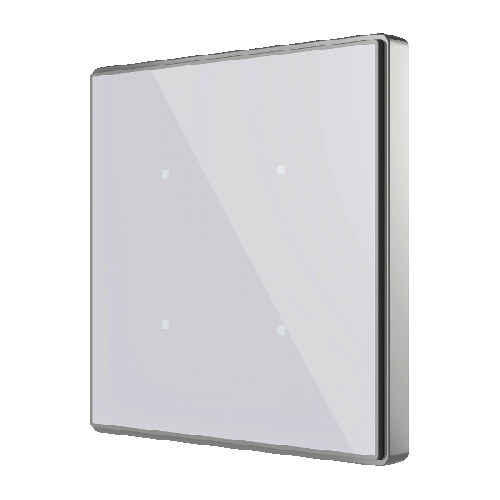

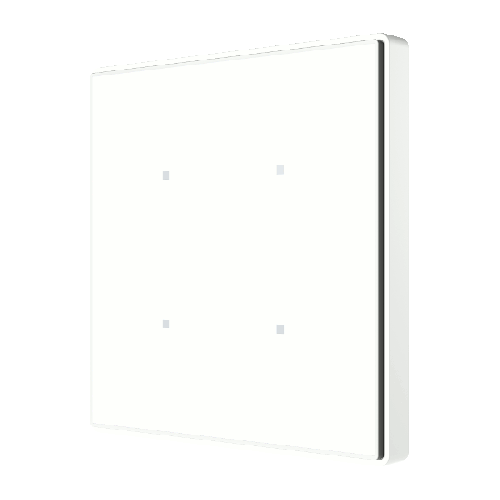

Square TMD is a capacitive switch with 1, 2, 4 or 6 multifunction buttons. Square TMD is a KNX switch with capacitive buttons that satisfies the design requirements of any project thanks to its total customization: everyone can create unique compositions, which could include images, icons, texts or logos. This customization is printed on a high-strength tempered glass with a polycarbonate frame to finish off the author’s work. Square TMD 1, 2, 4 or 6 allows selecting the function for each button and also includes thermostat function, internal temperature probe and two analog/digital inputs

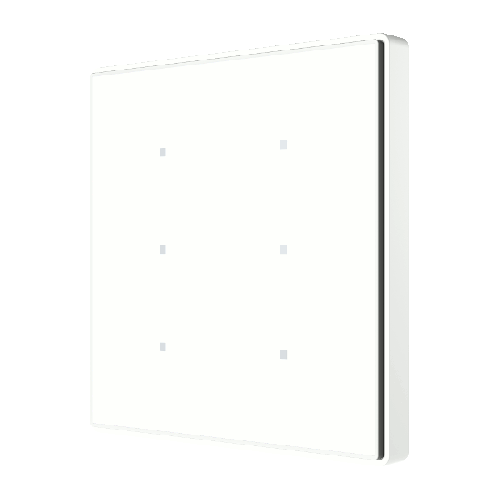

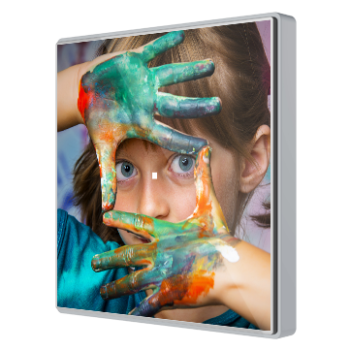

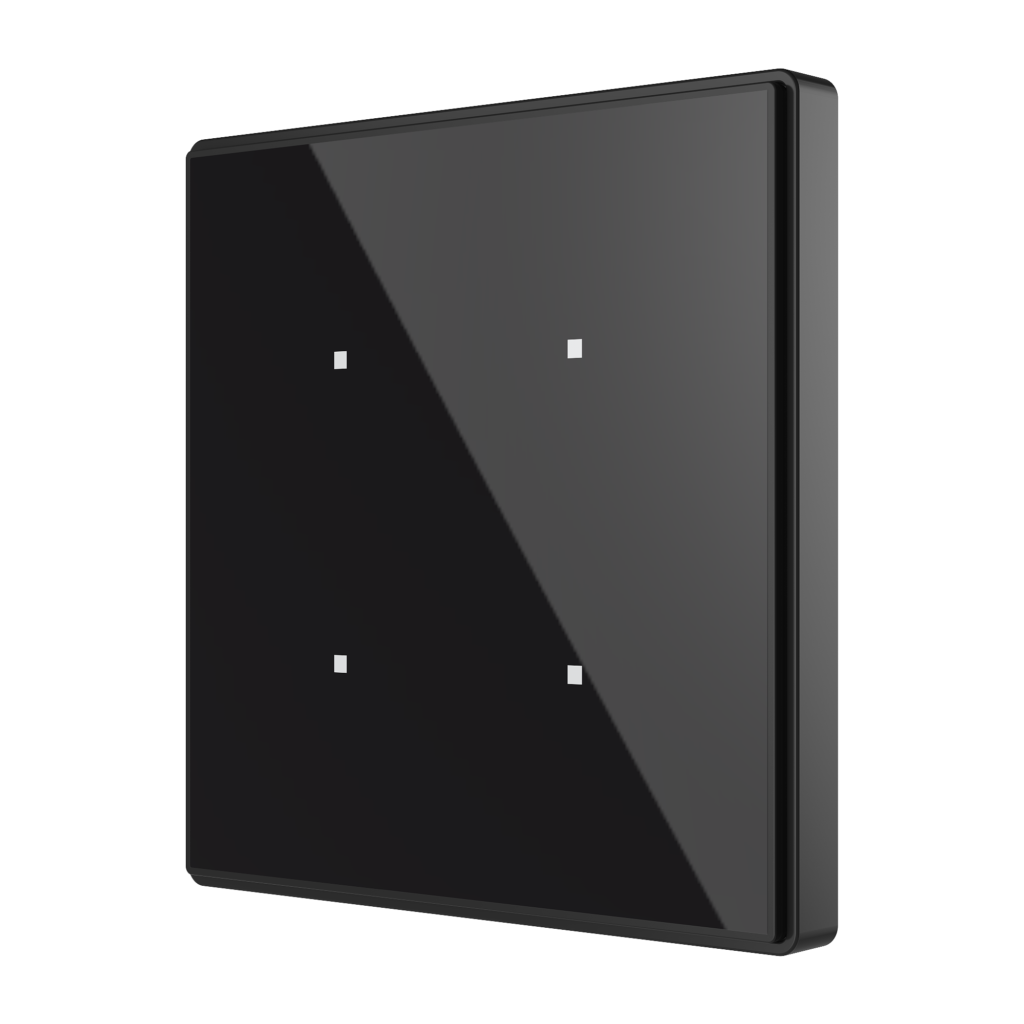

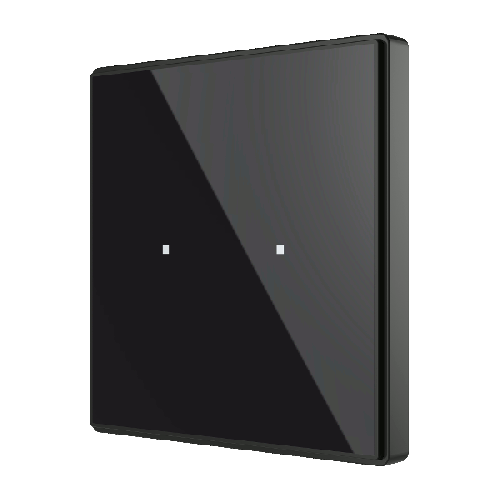

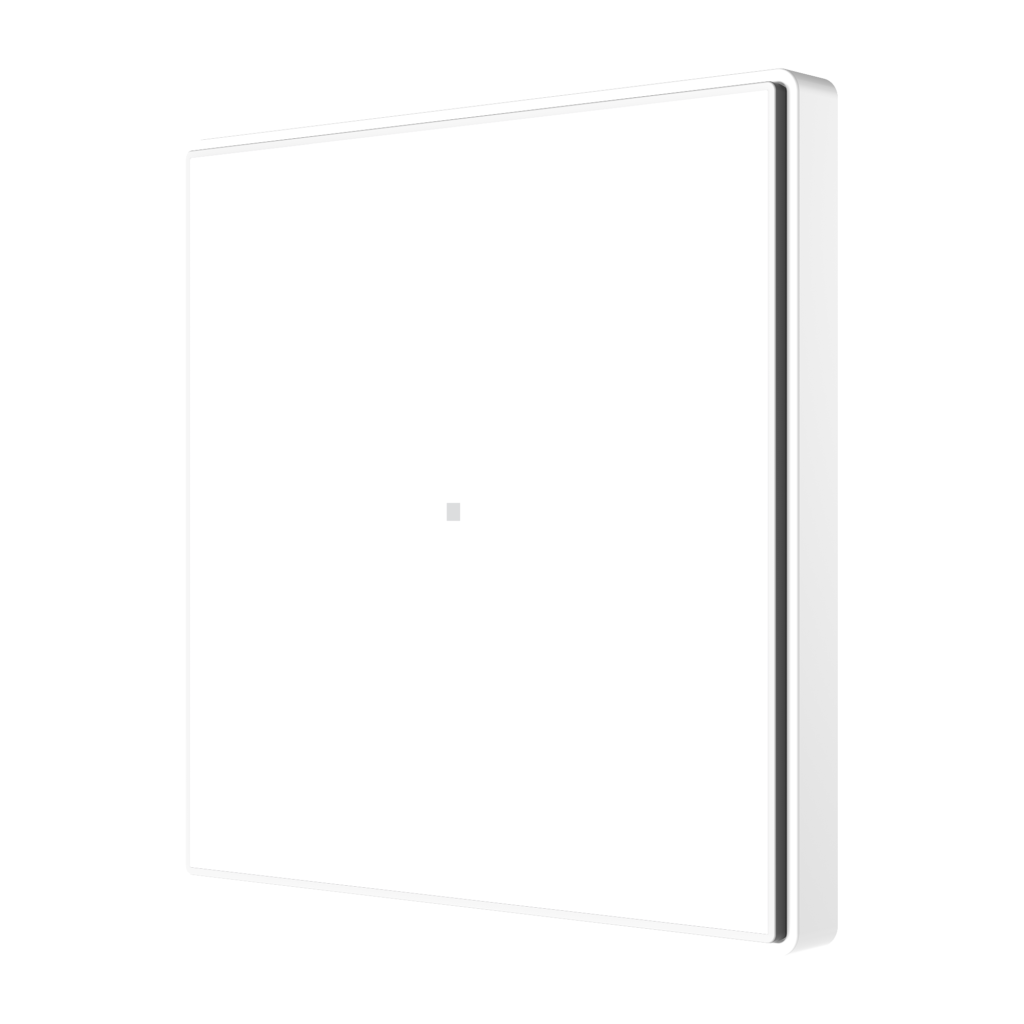

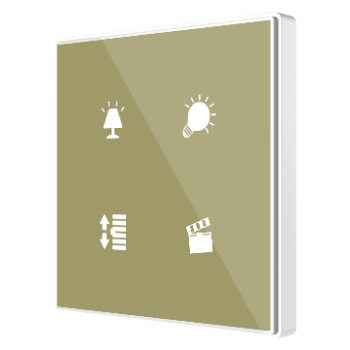

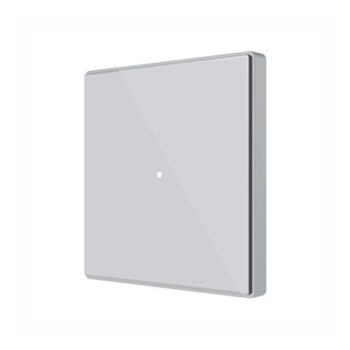

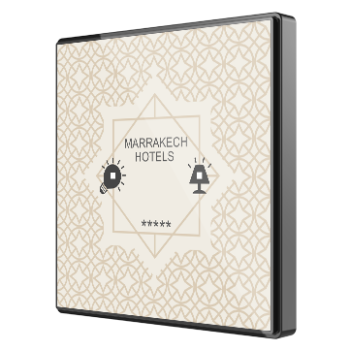

Available models: Standard White/Anthracite/Silver or Customized.
On-line application for designing your own Capacitive Switch.
APPLICATION PROGRAM ETS:
| Technical Documentation | Date | Version | Downloads |
| Datasheet | 5 | ||
| Manual | [1.2]_a | ||
| Manual On-line Application for Designing your own Capacitive Switch Touch-MyDesign | |||
| Specific Manuals: | |||
| – Zennio Thermostat Manual | [0.2]_b | ||
| – Temperature Probe Manual | [0.1]_c | ||
| – Binary Inputs Manual | [0.3]_a | ||
| – Motion Detector Manual | [0.3]_a | ||
| Variants | ZVI-SQTMD6-W, ZVI-SQTMD6-S, ZVI-SQTMD6-A, ZVI-SQTMD6-CUS, ZVI-SQTMD4-W, ZVI-SQTMD4-S, ZVI-SQTMD4-A, ZVI-SQTMD4-CUS, ZVI-SQTMD2-W, ZVI-SQTMD2-S, ZVI-SQTMD2-A, ZVI-SQTMD2-CUS, ZVI-SQTMD1-W, ZVI-SQTMD1-S, ZVI-SQTMD1-A, ZVI-SQTMD1-CUS |
|---|---|
| Brands | Zennio |
