Description

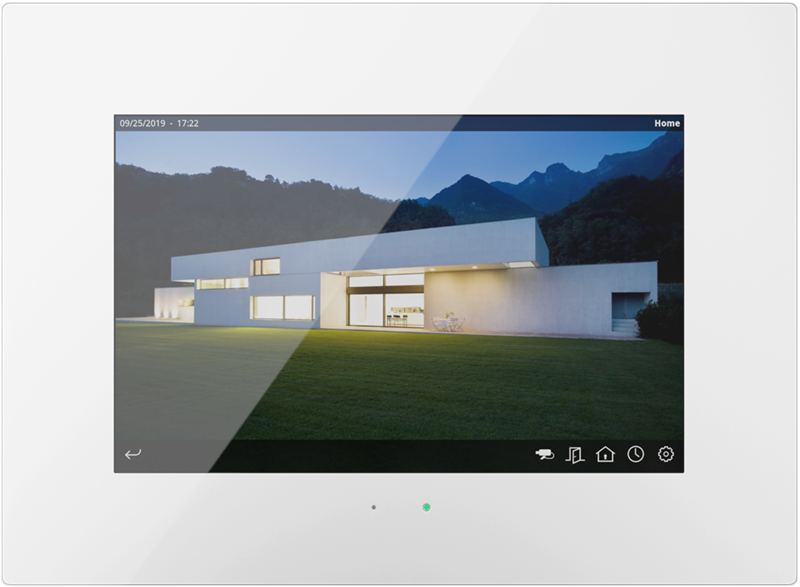

“All-in-one KNX 10.1” TFT touch panel. Intuitive, user-friendly visualisation with a clean and polished user interface. Supports up to 512 custom pages. Graphical navigation through maps and zones, a wide range of widgets, configurable background images, touch gestures, and much more.
– Capacitive multi-touch screen
– Graphical navigation via maps and zones
– Schedules, scenes, alarms, multiple thermostats, logic functions,
event notifications (push/GSM/e-mail) and much more.
– 4 multifunction inputs (each configurable as a probe input
binary/temperature)
– Direct connection to KNX bus (TP1)
– Requires external 12-30 VDC power supply
– Requires wall mounting box (ref. E-C557)
Accessories IDDERO VERSO HC3L-KNX:
- TS-N1PB – External temperature probe
- TS-GLASS – Glass temperature probe
- E-C620 – Wall-mounting box
- Demo Kit – HC3L-KNX demo kit
