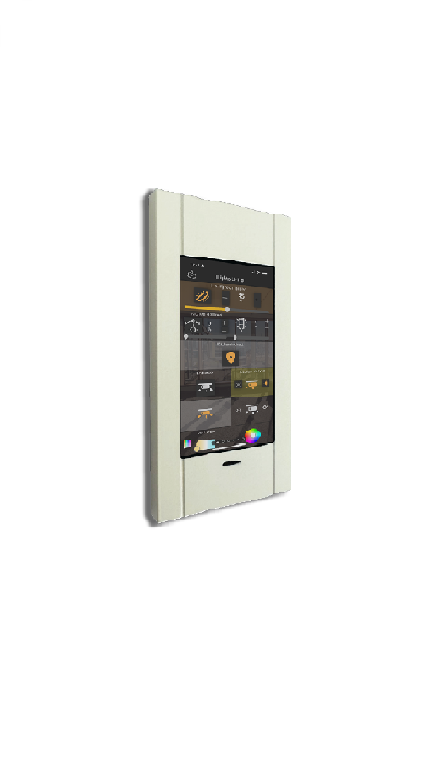

“K” Server/Client | Touch panel server 4.3″ with unlimited clients / Temperature and humidity sensors

ThinKnx K is the elegant stand-alone server, very easy to configure, that permits the control of the KNX plant and is the ideal solution for different scenarios such as residential buildings or hotels. The 4.3” high-resolution capacitive touch screen, the embedded temperature and humidity sensors as well as the RGB nightlight enhance its performances. The easy to use and intuitive graphics are characterized by predefined widgets and unlimited pages for the management of the main KNX functions (lights, dimmers, blinds, RGB, thermostats etc) and allow the user to create up to six pages of “favourites”. Through its dedicated App it is possible to remotely control it from any platform. “K” device can also be used as a client for the Pro Line servers, only acting as an extra user interface. Fanless processing device optimized for continuous operation. 4.3” LCD screen. Resolution 480X800 HD. Linux operating system. Standard Automation. Camera monitoring. Widgets view. 1x KNX TP port. 1x Ethernet 10/100 port. 1x USB port. Temperature and humitidy sensors. Power: 12-24VDC – 1A Max.

It can only be mounted only vertically.

Available solutions for “K”:

• Frame Options: Tailor-made by Italian artisans with high care for detail, the frames for ThinKnx “K” have a unique design and a mind-blowing cutting. The “K” is sold together with its frame, available in Fenix NTM in black or white.
• Customization of materials and colors available upon request.

Accessories for “K” Server/Client:

• KBOX_504 – Wall Mount Box
• KBOX_ABBH251 – Wall Mount Box
• KBOX_ATTEMA1066 – Dry Wall Box
• KBOX_PB504N – Dry Wall Box
• POWDIN – Power Supply
