Additional information
| Brands | Zennio |
|---|
Description

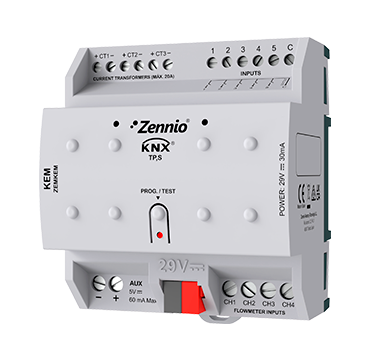

KNX Energy Monitor for electricity and water consumption, as well as heating/cooling energy consumption for up to 2 climate systems. It has 3 channels to monitor electricity consumption (max 20 A), 4 channels to connect turbine flow meters (max 15 mA at 5 VDC) and 5 analog-digital inputs to connect flow and return water temperature probes. It also includes 10 logical functions, consumption dependent notifications and alarms. The 5 VDC power output can supply power for the connected flow meters . DIN-rail mounting device (4.5 DIN-rail units).
APPLICATION PROGRAM ETS:
Only for ETS5/ETS6
Downloads
| Technical Documentation | Date | Version | Downloads |
| Datasheet | 3 | ||
| Manual | [1.1]_a | ||
| Specific Manuals: | |||
| – Temperature Probe Manual | [3.0]_a | ||
| – Binary Inputs Manual | [2.0]_a | ||
| – Motion Detector Manual | [3.0]_a | ||
| – Logical Functions Manual | [2.0]_a | ||
| Flowmeter 9900027’s Technical note – Factors K and a characterisation for ETS | 1 | ||
| Flowmeter 9900028’s Technical note – Factors K and a characterisation for ETS | 1 | ||
