Additional information
| Variants | BE-GT04W.01, BE-GT04S.01, BE-GTT4W.01, BE-GTT4S.01, BE-GT08W.01, BE-GT08S.01, BE-GTT8W.01, BE-GTT8S.01 |
|---|---|
| Brands | MDT |
Description

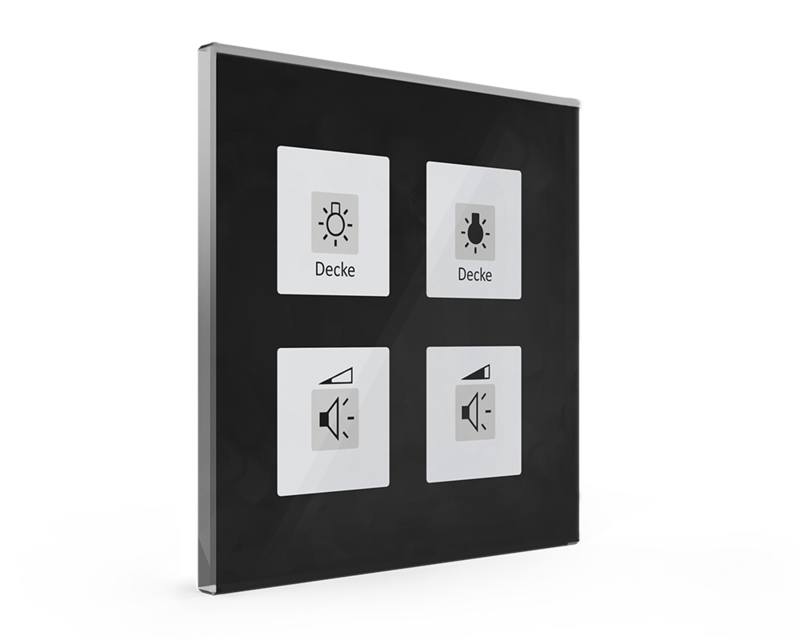

The MDT Glass Push-button releases KNX telegrams after touching the sensor areas on top, 1 or 2 button operation can be parameterized. Sensor areas can be programmed for 1 or 2 button operation. NO or NC contact operation, operational time of push-button adjustable. Forced setting function for each output. Operation with short / long button push and 2 objects. White / red LED for each sensor area. 4 integrated logical modules. Cleaning function. Additional switching channel (e.g. panic function). Surrounding orientation light with day / night object. Integrated temperature sensor (only BE-GTTxx.01). Brightness of LED adjustable in 5 steps via object. Sending of an second object is possible by the logical modules. Operation of blinds and shutters, 1 and 2 button operation. Labelling foil to be inserted behind the glass front. Labelling film included. Installation in an installation box. Dimensions (W x H): 4-fold: 92 mm x 92 mm; 8-fold: 92 mm x 163 mm. Integrated bus coupling unit. Production in Germany, certified according to ISO 9001. 3 year warranty.
Colour: White, Black.
Functional Areas: 4-fold, 8-fold.
Status Display: Yes.
Temperature Sensor: No, Yes.
Downloads
| Technical Documentation | Date | Version | Downloads |
| Productdatabase ETS4/5/6 | 04/13 | V1.0a | knxprod |
| Datasheet | |||
| Assembly and operational instructions | |||
| Technical manual | |||
| Tender texts | Link | ||
| Print template with icons. Requires Adobe Acrobat Reader | zip | ||
Available Variants of this series:
KNX Glass Push Button Plus
Colour: White; Functional Areas: 4-fold; Temperature Sensor: No
KNX Glass Push Button Plus
Colour: White; Functional Areas: 4-fold; Temperature Sensor: Yes
KNX Glass Push Button Plus
Colour: Black; Functional Areas: 4-fold; Temperature Sensor: No
KNX Glass Push Button Plus
Colour: Black; Functional Areas: 4-fold; Temperature Sensor: Yes
KNX Glass Push Button Plus
Colour: White; Functional Areas: 8-fold; Temperature Sensor: No
KNX Glass Push Button Plus
Colour: White; Functional Areas: 8-fold; Temperature Sensor: Yes
KNX Glass Push Button Plus
Colour: Black; Functional Areas: 8-fold; Temperature Sensor: No
