Push-button Lite 55 | RGBW – neutral/blinds/switch with Temperature Sensor

Description

The MDT Push-button Lite 55 is a neutral KNX push-button with vertically arranged 2 button operation and colour-adjustable status LEDs. The buttons can be set as 2 button operation (two-surface) or 1 button operation. Each push-button surface has 2 RGBW status LEDs. Aside from switching, dimming, shutter or sending values, there are numerous functions to choose from. The Push-button Lite 55 has 4 integrated logic blocks. Fits 55 mm systems/ranges. Push-buttons can be programmed for 1 or 2 button operation. 1 and 2 button operation for switching, dimming, shutters, values. Changing of values / scenes with up to 4 values. Operation with short / long button push and 2 objects. Innovative group control with long / extra long button press. New multi-touch function, sends up to 4 values / DPTs on the same or different objects. Two RGBW status LED per button pair. LED brighness controllable via day / night or brightness object. 4 logic blocks. Integrated bus coupling unit. Production in Germany certified according to ISO 9001. 3 year warranty.

The MDT Push-button Lite 55 fits into the switch lines of leading manufacturers, such as:

  • GIRA Standard 55, E2, E22, Event, Esprit
  • BERKER S1, B3, B7
  • JUNG A 500, A PLUS, A CREATION, AS 500, A550, A FLOW
  • MERTEN 1M, M-Smart, M-Plan, M-Pure

Feature: Push Button.

Colour: Pure white gloss.

Functional Areas: 1-fold, 2-fold, 4-fold.

Status Display: Yes.

Temperature Sensor: Yes.

Assortment: 55 mm.

Engraving: neutral, UP/DOWN Symbol, I/O Symbol, Up/Down Symbol and I/O Symbol, I/O and Up/Down Symbol.

Downloads

Technical Documentation Date Version Downloads
Device Configuration App (DCA) ETS5/6 From ETS5.7.x 07/23 V5.1.2.1 etsapp
Productdatabase ETS4/5/6 12/22 V14 knxprod
Datasheet pdf
Assembly and operational instructions pdf
Technical manual pdf
Tender texts Link
Available Variants of this series:
Push-button Lite 55 | RGBW - neutral/blinds/switch with Temperature Sensor
Functional Areas: 1-fold; Engraving: neutral
Push-button Lite 55 | RGBW - neutral/blinds/switch with Temperature Sensor

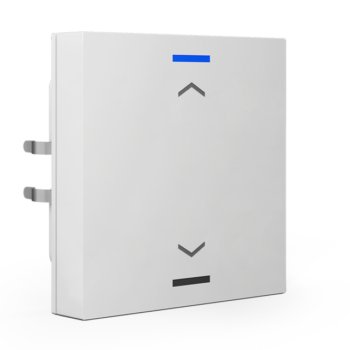

Functional Areas: 1-fold; Engraving: UP/DOWN Symbol
Push-button Lite 55 | RGBW - neutral/blinds/switch with Temperature Sensor

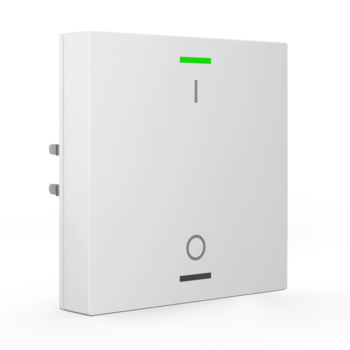

Functional Areas: 1-fold; Engraving: I/O Symbol
Push-button Lite 55 | RGBW - neutral/blinds/switch with Temperature Sensor

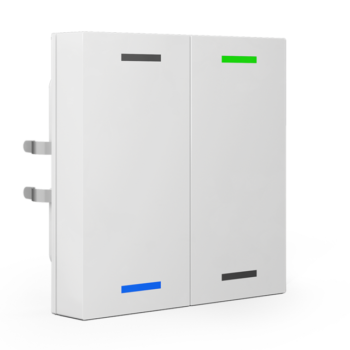

Functional Areas: 2-fold; Engraving: neutral
Push-button Lite 55 | RGBW - neutral/blinds/switch with Temperature Sensor
Functional Areas: 2-fold; Engraving: UP/DOWN Symbol
Push-button Lite 55 | RGBW - neutral/blinds/switch with Temperature Sensor
Functional Areas: 2-fold; Engraving: I/O Symbol
Push-button Lite 55 | RGBW - neutral/blinds/switch with Temperature Sensor

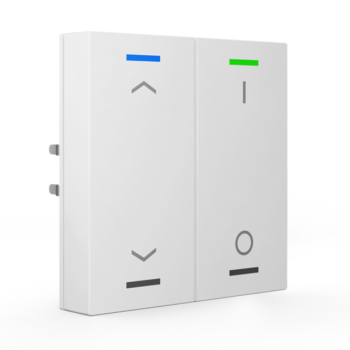

Functional Areas: 2-fold; Engraving: Up/Down Symbol and I/O Symbol
Push-button Lite 55 | RGBW - neutral/blinds/switch with Temperature Sensor
Functional Areas: 2-fold; Engraving: I/O and Up/Down Symbol
Push-button Lite 55 | RGBW - neutral/blinds/switch with Temperature Sensor

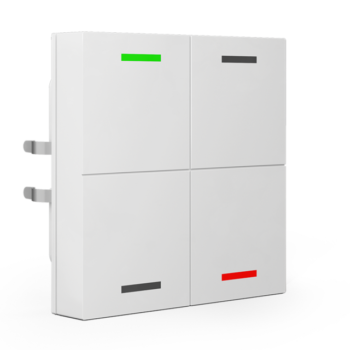

Functional Areas: 4-fold; Engraving: neutral
