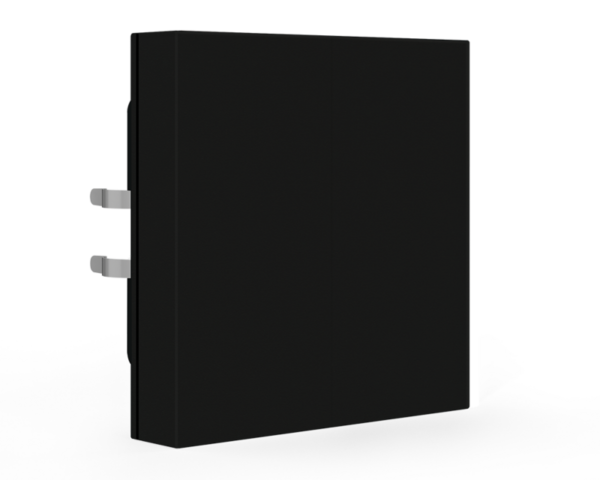

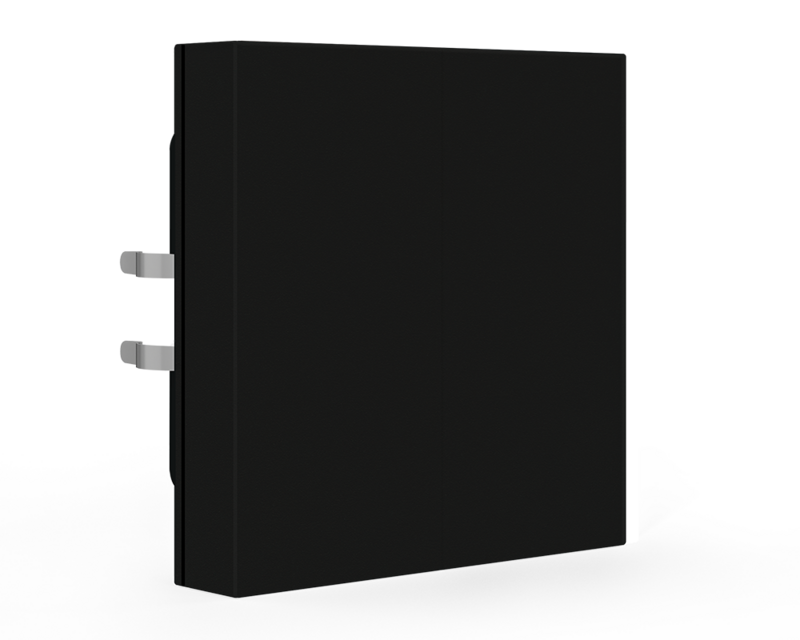

Push-button Lite 55 Basic

Description

The MDT Push-button Lite 55 Basic is a neutral and discreet KNX push-button with vertically arranged 2 button operation. The buttons can be set as 2 button operation (two-surface) or 1 button operation. Aside from switching, dimming, shutter, scenes or sending values, there are numerous functions to choose from. The Push-button Lite 55 Basic has 4 integrated logic modules. Fits 55 mm systems / ranges. Push-buttons can be programmed for 1 or 2 button operation. 1 and 2 button operation for switching, dimming, shutters, values. Changing of values / scenes with up to 4 values. Operation with short / long button-push and 2 objects. Innovative group control with long / extra long button press. New multi-touch function, sends up to 4 values / DPTs on the same or different objects. 4 logic blocks. Integrated bus coupling unit. Production in Germany certified according to ISO 9001. 3 year warranty.

The MDT Push-button Lite 55 Basic fits into the switch lines of leading manufacturers, such as:

White

  • GIRA Standard 55, E2, E22, Event, Esprit
  • BERKER S1, B3, B7
  • JUNG A 500, A PLUS, A CREATION, AS 500, A550, A FLOW
  • MERTEN 1M, M-Smart, M-Plan, M-Pure

Black

  • GIRA E2
  • BERKER B3, B7
  • JUNG A550
  • MERTEN M-Pure

Feature: Push Button.

Colour: Pure white gloss, Black matt.

Functional Areas: 1-fold, 2-fold.

Assortment: 55 mm.

Downloads

Technical Documentation Date Version Downloads
Device Configuration App (DCA) ETS5/6 From ETS5.7.x 07/23 V5.1.2.1 etsapp
Productdatabase ETS4/5/6 12/22 V1.4 knxprod
Datasheet pdf
Assembly and operational instructions pdf
Technical manual pdf
Tender texts Link
Available Variants of this series:
Push-button Lite 55 Basic
Colour: Pure white gloss; Functional Areas: 1-fold
Push-button Lite 55 Basic
Colour: Black matt; Functional Areas: 1-fold
Push-button Lite 55 Basic
Colour: Pure white gloss; Functional Areas: 2-fold
Push-button Lite 55 Basic
Colour: Black matt; Functional Areas: 2-fold
