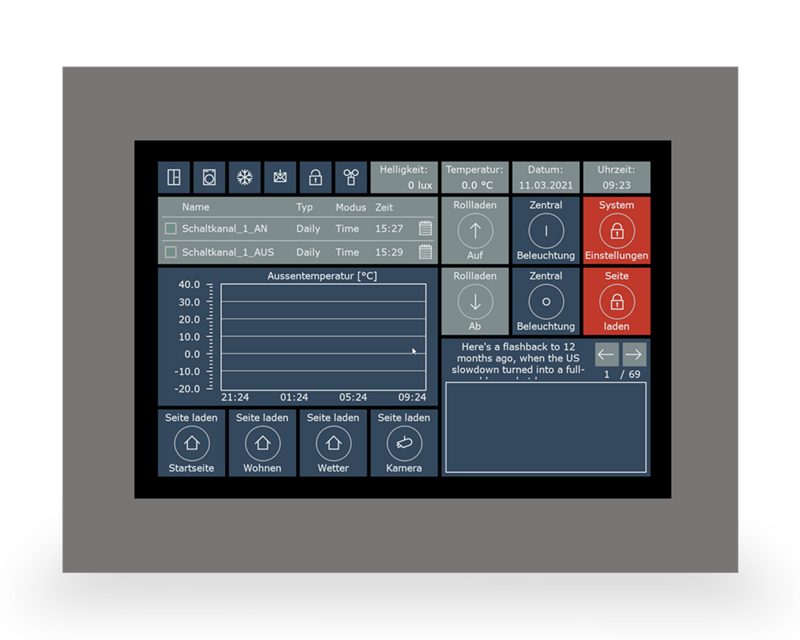

Touchpanel VisuControl 10″/25,6 cm | Remote access

REF: VC-1001.04 Categorias: , Etiquetas: , , , , , ,
Description

The MDT VisuControl Touch Panel is used for the visualisation of the current building status and to control building functions. Capacitive glass touch display with LED backlight. User interface individually programmable. Switching and dimming, shutter / blind control. Remote access via iPad / iPhone / Android / PC. Alarm indication. Displaying trends. Forwarding of informations via email. VisuControl lite software and demo projects included. LED backlight. 24 V DC power supply required (e.g. STV-0024.01). Integrated bus coupling unit. Production certified according to ISO 9001. 3 year warranty.

Installation Type: Flush-mounted.

Colour: White, Black, Stainless steel look.

Mounting: Wall.

Size: 10″ / 25,6 cm.

Visucontrol Accessories: Glas frame, Frame, Metal flush-mounted socket.

Downloads

Technical Documentation Date Version Downloads
Datasheet pdf
Assembly and operational instructions for 10″ / 25,6 cm Touchpanel VC 0710.04 pdf
Tender texts Link
Software – programming software VisuControl Lite 12/20 V4.0.1.228 exe
Software – programming software VisuControl Pro 12/20 V4.0.1.228 exe
Project planning information – Demo project for VC-1001.04 touchpanel 06/20 zip
Available Variants of this series:
