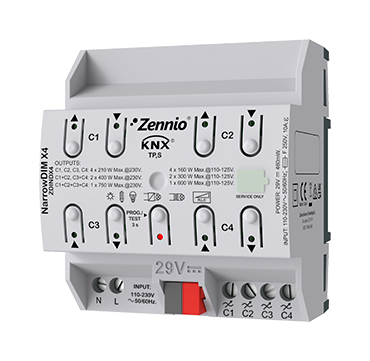

NarrowDIM X4 | Universal dimmer actuator – 4 channels x 210W – 4.5 DIN units

Description

Universal dimming actuator (RLC, LED, CFL*) for DIN-rail (4.5 units) with 4 channels for up to 210 W at 230 VAC (160 W at 110 VAC). It allows double channel connection, up to 400 W at 230 VAC (300 W at 110 VAC) and quad channel connection to control up to 750 W at 230 VAC (600 W at 110 VAC). Auto load type detection (RLC). Configurable dimming curves for LED and CFL. It allows manual control of its outputs through the push buttons on the cover. It includes 10 independent logical functions. Error detection: short circuit, voltage surge, overheating, anomalous frequency, power failure, parameterization error.

*Only dimmable loads.

APPLICATION PROGRAM ETS:

Only for ETS5/ETS

Downloads

Technical Documentation

Date Version

Downloads

Datasheet 5 pdf
Manual [1.5]_a pdf
Specific Manuals:
 – Logical Functions Manual [3.0]_a pdf
Technical Note for Testing with LED and CFL Lamps 3 pdf
LED and CFL Lamps Testing Results

31/01/2017

1

1

zip
Available Variants of this series:
