Bus Power Supply STV

REF: STV-0XX0.02 Categorias: , , Etiquetas: , , ,
Description

The MDT KNX / EIB Power Supply with integrated choke produces the stabilized KNX system voltage (30 V DC) to supply the connected KNX / EIB components. The operating status is indicated via 3 LED. KNX power supply with integrated choke. Mains voltage 230 V AC. Short-circuit-proof. Overload safe. Temperature control with shutdown on over temperature. LED indicator for bus reset, normal operation and bus overload. Choke free output (STV-640.02 only). Modular installation device for DIN 35 mm rails. Integrated bus coupling unit. Production in Germany, certified according to ISO 9001. 3 year warranty.

Installation Type: MDRC.

Supply Voltage: 160mA, 320mA, 640mA.

Device width: 2SU, 4SU.

Downloads

Technical Documentation Date Version Downloads
Productdatabase ETS4/5/6 09/17 V1.0 knxprod
Datasheet pdf
Assembly and operational instructions pdf
Tender texts Link
CAD-drawing zip
Available Variants of this series:
Bus Power Supply STV - STV-0160.02
Supply Voltage: 160mA; Device width: 2SU
Bus Power Supply STV - STV-0320.02
Supply Voltage: 320mA; Device width: 2SU

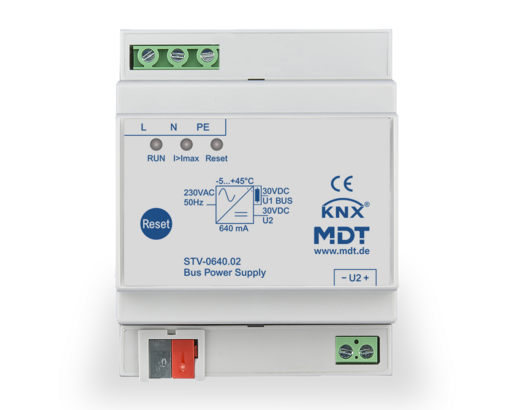

Bus Power Supply STV - STV-0640.02
Supply Voltage: 640mA; Device width: 4SU
