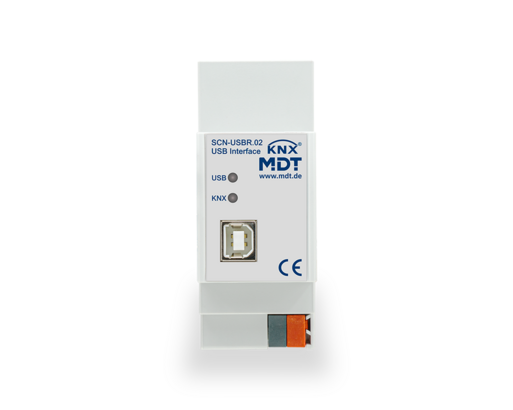

KNX USB Interface

REF: SCN-USBR.02 Categorias: , , Etiquetas: ,

The USB Interface enables the communication between the PC and the KNX / EIB system. The USB interface is galvanically isolated from the KNX / EIB bus. To enable communication between PC and the KNX bus via USB. Fully compatible with ETS 4/5/6. Supports PC sleep mode. Firmware can be updated. Quick application download (long frame support with ETS 5 or higher). Modular installation device for DIN 35 mm rails. Integrated bus coupling unit. Production in Germany, certified according to ISO 9001. 3 year warranty.

Installation Type: MDRC.

Device width: 2SU.


Technical Documentation Date Version Downloads
Productdatabase ETS4/5/6 04/13 V1.0 knxprod
Datasheet pdf
Assembly and operational instructions pdf
Tender texts Link
Available Variants of this series:
