DALI Control 64 Gateway

REF: SCN-DA64X.04 Categorias: , , Etiquetas: , , ,
Description

The MDT DALI Control 64 Gateway forms the interface between the KNX and the DALI bus. For example, it enables the existing DALI lights to be switched and dimmed using the MDT glass or plastic push-buttons. The gateway supports DALI and DALI-2 compliant lights/ballasts, from single colour to Tunable White, to RGB(W). SCN-DA641.04: Individual control of up to 64 ECGs / 16 DALI groups. SCN-DA642.04: 2 DALI outputs for max. 2 x 64 ECGs; individual control of up to 64 ECGs / 16 DALI groups per output. Supports DALI and DALI-2 standard, as well as DALI ECG DT6 / DT8. Innovative HSV color control, RGB, RGBW and XY colour according to DALI DT8 standard (16 DALI groups). Tunable White, color temperature control (16 DALI groups). Integrated color control module for time-dependent control of the luminous color in up to 300 steps. Operation modes incl. normal operation, continuous operation, night operation, stairwell- and panic operation, manual operation. 16 scenes with individual dimming times. Energy saving function for switching off the ECGs in the DALI groups (via additional KNX switch actuator). Fault detection of lamp faults and faulty ECGs. Quick exchange of ECG. Free DCA app for commissioning the DALI bus system and configuration of the scenes and time control. Commissioning with ETS5 or higher. Production in Germany certified according to ISO 9001. 3 years warranty.

Installation Type: MDRC.

Dali: Yes.

Device width: 4SU.

HSV Colour control: Yes.

RGB Colour control: Yes.

RGBW Colour control: Yes.

Tuneablewhite Colour control: Yes.

Downloads

Technical Documentation Date Version Downloads
Productdatabase ETS5/6 from ETS5.7x 08/22 V1.1 knxprod
Device Configuration App (DCA) ETS5/6 05/22 V1.1.2.0 etsapp
Firmwareupdates SCN-DA641.04 12/22 V0.3.5 zip
Firmwareupdates SCN-DA642.04 12/22 V0.3.5 zip
Manual to update firmware pdf
Datasheet pdf
Assembly and operational instructions pdf
Technical manual pdf
Functional overview Comparison DALI Gateways pdf
Tender texts Link
CAD-drawing 05/22 zip
Available Variants of this series:

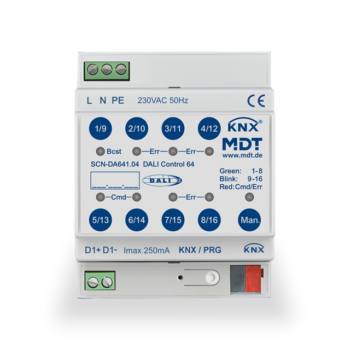

DALI Control 64 Gateway - SCN-DA641.04
1 DALI outputs for max. 64 ECGs

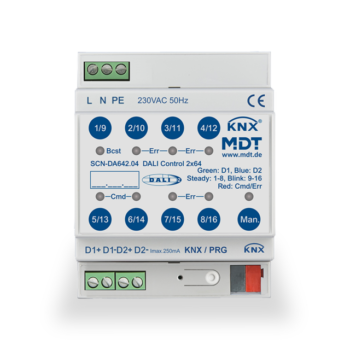

DALI Control 64 Gateway - SCN-DA642.04
2 DALI outputs for max. 2 x 64 ECGs
