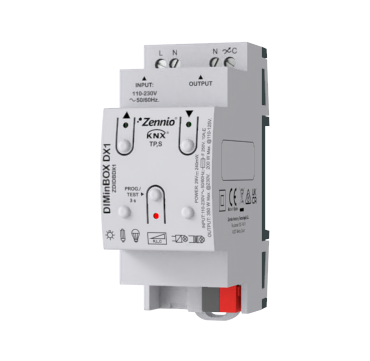

DIMinBOX DX1 | Universal dimmer actuator for DIN rail mounting – 1 channel x 350W

Description

Universal dimming actuator (RLC, LED, CFL*) for DIN-rail (2 units) with 1 channel for up to 350 W at 230 VAC (200 W at 110 VAC). Auto load type detection (RLC).
Configurable dimming curves for LED and CFL. It allows manual control of its outputs through the push buttons on the cover. It includes 10 independent logical functions. Error detection: short circuit, voltage surge, overheating, anomalous frequency, power failure, parameterization error.

*Only dimmable loads.

APPLICATION PROGRAM ETS:

Only for ETS5/ETS6

Downloads

Technical Documentation

Date

Version

Downloads

Datasheet 6 pdf
Manual [1.4]_a pdf
Specific Manuals:
 – Logical Functions Manual [3.0]_a pdf
Technical Note for Testing with LED and CFL Lamps 3 pdf
LED and CFL Lamps Testing Results

31/01/2017

1

1

zip
Available Variants of this series:
