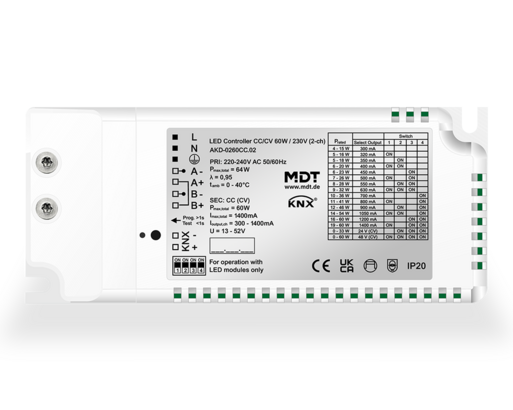

LED Controller CC/CV flush mounted | 2 Folds

LED Controller CC/CV for 230 V and two single channels. Optimised hybrid dimming for a better light quality (not prone to flickering). Comprehensive application, absolute and relative dimming. Dim range von 0.2% to 100%, minimum current 1 mA. Perfect dim behaviour over the entire dimming range. Max. output power 60 W / 30 W over both channels. Output current max. 1,400 mA / 700 mA. Constant current selectable via DIP switch. Tuneable white colour temperature control. Selectable dim curve, individual sequences. Operating modes: 2× white, tuneable white. Automatic colour temperature control Dim2Warm. Dynamic daylight control HCL. Automatic time-dependent dimming. Overcurrent and overtemperature monitoring. Integrated power supply unit in compact design. Secondary connection cable up to 6 m. Dimensions (W × H × D): 129 mm × 54 mm × 25 mm.

Installation Type: Flush-mounted.

Channels: 2-fold.

V230: Yes.

Tuneablewhite Colour control: Yes.

Output current max.: 1.400 mA.

Max. output power: 60 W.
