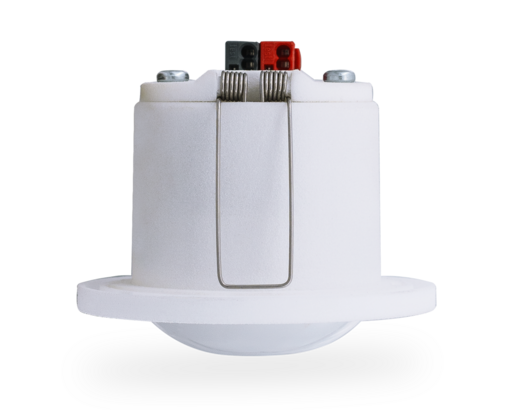

Presence detector 360° L3 TS

REF: SCN-P360L3.03 Categorias: , , Etiquetas: , , , , , , , ,
Description

Presence detector with 3 sensors and temperature sensor. Version for installation in hollow ceilings. 3 sensors with lens for presence detection. Adjustable trigger- and Presence sensitivity for day, night and Alarm. Range 11 m Ø, presence 5 m Ø. 3 light channels, individual evaluation of sensors. 1 HVAC and 1 alarm / notification channel. Short time presence to reduce the time lapse. Integrated Temperature sensor. Input for an external push-button with release time. Intelligent switchover function for automatic / manual operation. Blocking- and forced function with release time. Extensive day / night function with 2nd switching object. Integrated white LED night light. Orientation light function for leaving the room. Avoidance of false reports of the alarm channel by sensitivity reduction and observation window adjustability. Flush installation, drill hole diameter 44 mm, Installation depth: 44 mm. 3 years warranty. Made in Germany.

Temperature Sensor: Yes.

Sensors: 3.

Sensortype: Ceiling installation.

Downloads

Technical Documentation Date Version Downloads
Productdatabase ETS4/5/6 08/23 V4.4b knxprod
Datasheet 07/23 pdf
Assembly and operational instructions 07/23 pdf
Technical manual 07/23 V1.2 pdf
Functional overview 07/23 pdf
Tender texts Link
Available Variants of this series:
