Temperature Controller | 2/4/6-fold

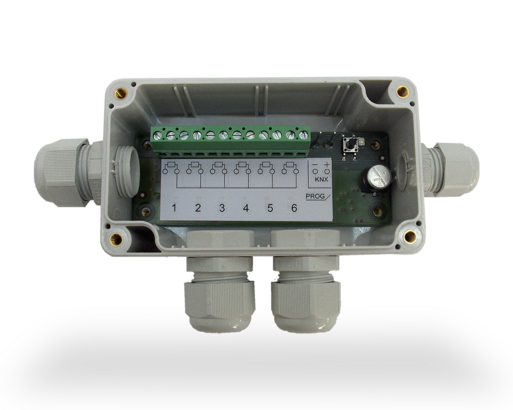

The MDT Temperature Controller is used for all purpose temperature control applications. The temperature is received as an KNX object or directly from the connected PT1000 temperature sensors (only SCN-RT6AP.01, SCN-RT2UP.01 or SCN-RT4UP.01). Selectable temperature controller (PI, two-step, PWM). Limit values min / max. Frost- / heat protection alarm. Min / max memory. Cyclical sending of contact state programmable. Day- / night- / frost- / heat protection operation, cooling function. Status feedback by HVAC and RHCC status objects. Operation mode can be set via Bit / Byte objects. Setpoint value via visualization, e.g. MDT VisuControl. Integrated bus coupling unit. Production in Germany, certified according to ISO 9001. 3 year warranty.

Installation Type: Flush-mounted, Surface-mounted.

Channels: 2-fold, 4-fold, 6-fold.

Accessories for SCN-RTxAP/UP.01: PT 1000 Sensor standard, PT 1000/3 Sensor standard, PT 1000 Sensor strap on installation, PT 1000 Sensor ceiling installation.


Technical Documentation Date Version Downloads
Productdatabase ETS4/5/6 01/17 V1.3a knxprod
Datasheet pdf
Assembly and operational instructions pdf
Technical manual pdf
Tender texts Link
CAD-drawing zip
Available Variants of this series:
Temperature Controller | 2/4/6-fold
Installation Type: Flush-mounted; Channels: 2-fold
Temperature Controller | 2/4/6-fold
Installation Type: Flush-mounted; Channels: 4-fold
Temperature Controller | 2/4/6-fold
Installation Type: Surface-mounted; Channels: 6-fold
