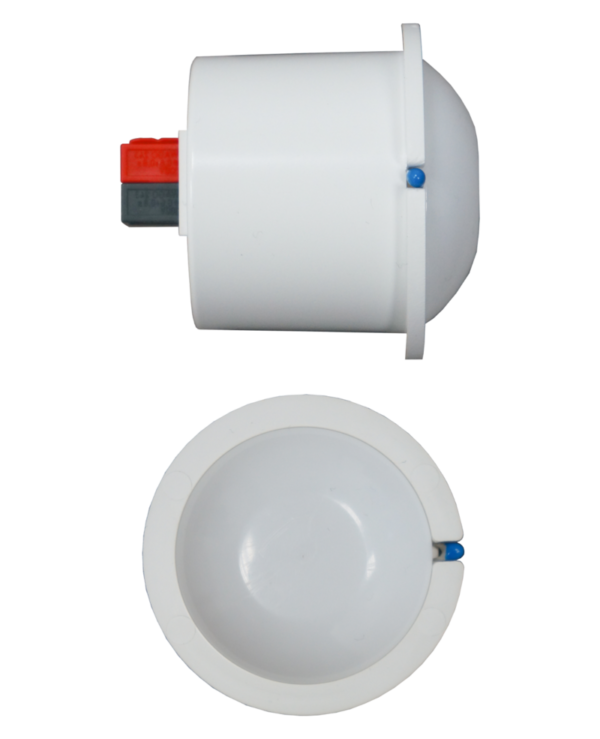

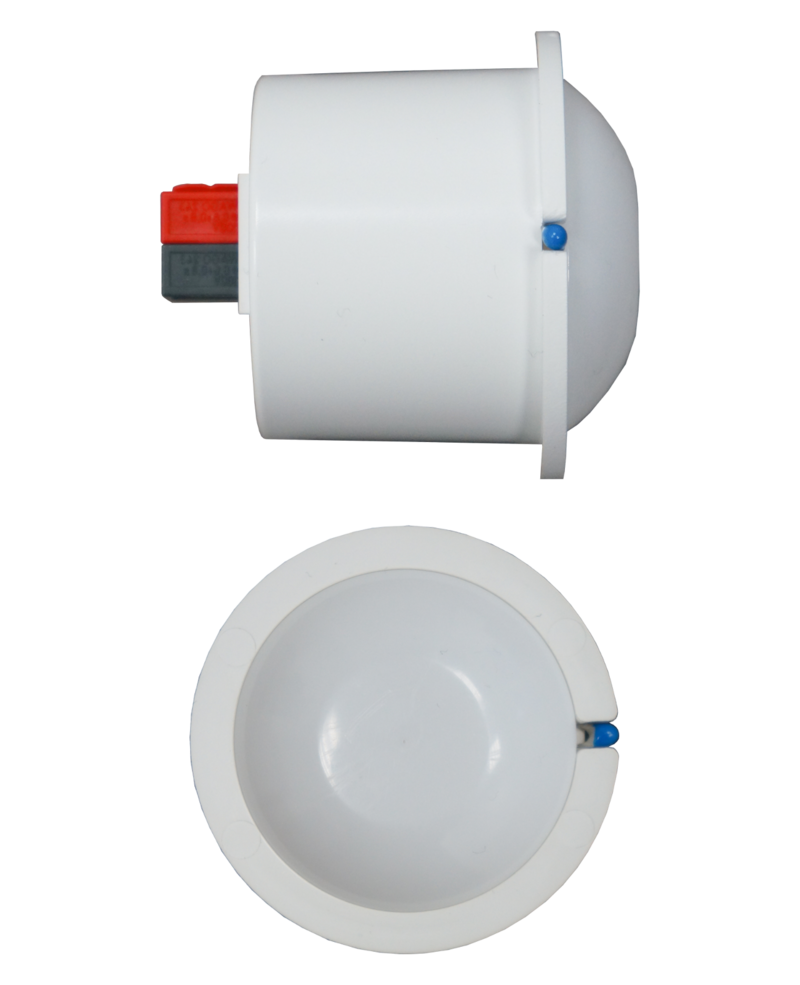

Presence Detector MR16

REF: SCN-P360E3.03 Categorias: , , Etiquetas: , , , , , , ,

For installation in standard MR16 mounting frames. The MDT Presence Detector with 3 pyro sensors and a high-resolution lens detect even the smallest movements. With integrated temperature sensor and LED night light. New comprehensive application. 3 sensors with lens for presence detection. Adjustable trigger and presence sensitivity for day, night and alarm. Coverage 11 m Ø, presence 5 m Ø. 3 light channels, sensors can be individually evaluated. HVAC and alarm / notification channel. Short-term presence to reduce the follow-up time. Integrated temperature sensor. Input for an external push-button with reset time. Intelligent switching function for automatic / manual operation. Lock and forced guidance function. Extensive day / night function with second switching object. Integrated white LED night light. Orientation light function (brightness and time adjustable). Avoidance of false reports for the alarm channel by reducing the sensitivity and adjustable observation window. Also usable for swiveling MR16 mounting frame. Production in Germany, certified according to ISO 9001. 3 year warranty.

Colour: White.

Temperature Sensor: Yes.

Assortment: free installation.

Sensors: 3.

Hkl Channel: Yes.

Reach: 11 m.

Max. Range (Ø) Presence: 5 m.


Technical Documentation Date Version Downloads
Device Configuration App (DCA) ETS5/6 From ETS5.7.x 07/23 V5.1.2.1 etsapp
Productdatabase ETS4/5/6 08/23 V4.4b knxprod
Datasheet pdf
Assembly and operational instructions pdf
Technical manual 07/23 V1.2 pdf
Tender texts Link
Available Variants of this series:
