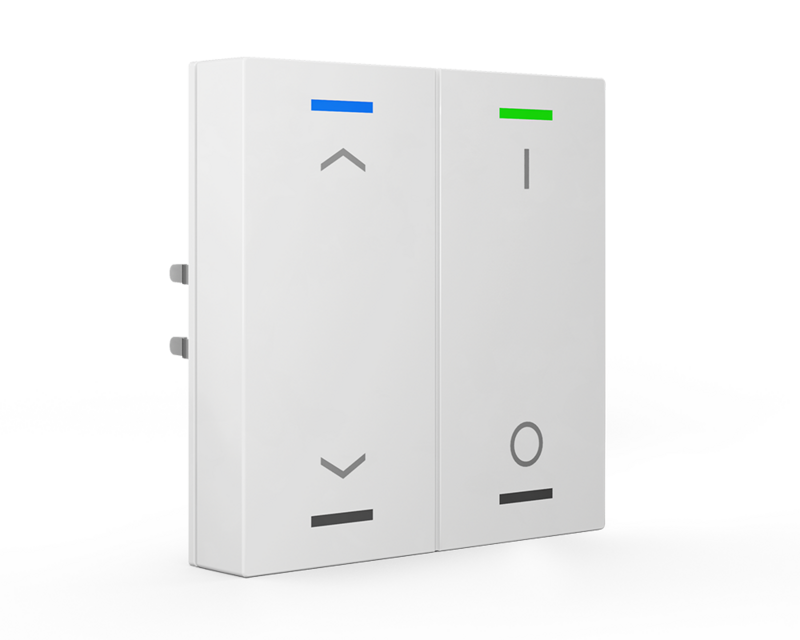

The MDT Push-button Lite 63 is a neutral KNX push-button with vertically arranged 2 button operation and colour-adjustable status LEDs. The buttons can be set as 2 button operation (two-surface) or 1 button operation. Each push-button surface has 2 RGBW status LEDs. Aside from switching, dimming, shutter or sending values, there are numerous functions to choose from. The Push-button Lite 63 has 4 integrated logic blocks. Fits 63 mm systems / ranges. New multi-touch function, sends up to 4 values / DPTs on the same or different objects. Innovative group control with long / extra long button press. Push-buttons can be programmed for 1 or 2 button operation. 1 and 2 button operation for switching, dimming, shutters, values. Changing of values / scenes with up to 4 values. Short / long button push and 2 objects. Two RGBW status LED per button pair. LED brighness controllable via day / night or brightness object. 4 logic blocks. Integrated bus coupling unit. Production in Germany certified according to ISO 9001. 3 year warranty.
The MDT Push-button Lite 63 fits into the switch lines of leading manufacturers, such as:
- Busch-Jaeger future linear, solo, carat, Busch-axcent
Feature: Push Button.
Colour: Studio white gloss.
Functional Areas: 1-fold, 2-fold, 4-fold.
Status Display: Yes.
Temperature Sensor: Yes.
Assortment: 63 mm.
Engraving: neutral, UP/DOWN Symbol, I/O Symbol, Up/Down Symbol and I/O Symbol, I/O and Up/Down Symbol.
You can find an overview of the replacement rockers here.
Downloads
Technical Documentation |
Date |
Version |
Downloads |
Device Configuration App (DCA) ETS5/6 From ETS5.7.x |
07/23 |
V5.1.2.1 |
etsapp |
Productdatabase ETS4/5/6 |
12/22 |
V1.4 |
knxprod |
|
Datasheet |
|
|
pdf |
Assembly and operational instructions |
|
|
pdf |
Technical manual |
|
|
pdf |
Tender texts |
|
|
Link |
