Push-button Plus 55 | Series .02 – with horizontally arranged and button operation

REF: BE-TA55PX.X2 Categorias: , Etiquetas: , , ,
Description

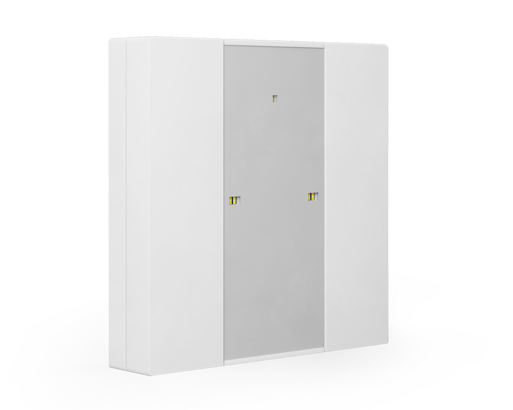

The MDT Push-button 55 is a clearly arranged KNX push-button with horizontally arranged 2 button operation. It features almost all the functions of the binary input and is designed for flush-mounted installation. By simply pressing a button, the push-button can call up parameterised functions such as scenes or the dimming function. A separate labelling field is available for labelling the key functions. Middle text field with cover foil for individual labelling. Push-buttons can be programmed for 1 or 2 button operation. LED for operation / status and orientation light. Single- and double button operation for Switching, Dimming, Blinds, Values. Innovative group control with long / extra long operation. Value / Scenes toggle with up to 4 values. Short / long button push and 2 objects. 4 Logic blocks. 2 / 4 / 6 / 8 Operation/Status LEDs (Red / Green) and Orientation light independently controllable. Switch object to control the Led priority. Installation in an installation box with included support ring. Integrated bus coupler. 3 years warranty. Made in Germany.

The MDT Push-buttons 55 fit into the switch lines of leading manufacturers, such as:

  • GIRA Standard 55, E2, E22, Event, Esprit
  • BERKER S1, B3, B7
  • JUNG A 500, A PLUS, A CREATION, AS 500, A550, A FLOW
  • MERTEN 1M, M-Smart, M-Plan, M-Pure

Colour: Pure white matt, Pure white gloss.

Functional Areas: 2-fold, 4-fold, 6-fold, 8-fold.

Downloads

Technical Documentation Date Version Downloads
Productdatabase ETS5/6 06/23 V2.0 knxprod
Assembly and operational instructions pdf
Datasheet pdf
Functional overview pdf
Tender texts Link
Print template with icons. Requires Adobe Acrobat Reader zip
Available Variants of this series:
Push-button Plus 55 | Series .02 - with horizontally arranged and button operation
Colour: Pure white matt; Button Operation: 2; Functional Areas: 2-fold
Push-button Plus 55 | Series .02 - with horizontally arranged and button operation
Colour: Pure white gloss; Button Operation: 2; Functional Areas: 2-fold
Push-button Plus 55 | Series .02 - with horizontally arranged and button operation
Colour: Pure white matt; Button Operation: 4; Functional Areas: 4-fold
Push-button Plus 55 | Series .02 - with horizontally arranged and button operation
Colour: Pure white gloss; Button Operation: 4; Functional Areas: 4-fold
Push-button Plus 55 | Series .02 - with horizontally arranged and button operation
Colour: Pure white matt; Button Operation: 6; Functional Areas: 6-fold
Push-button Plus 55 | Series .02 - with horizontally arranged and button operation
Colour: Pure white gloss; Button Operation: 6; Functional Areas: 6-fold
Push-button Plus 55 | Series .02 - with horizontally arranged and button operation
Colour: Pure white matt; Button Operation: 8; Functional Areas: 8-fold
Push-button Plus 55 | Series .02 - with horizontally arranged and button operation
Colour: Pure white gloss; Button Operation: 8; Functional Areas: 8-fold

Additional information

Variants

BE-TA55P2.02, BE-TA55P2.G2, BE-TA55P4.02, BE-TA55P4.G2, BE-TA55P6.02, BE-TA55P6.G2, BE-TA55P8.02, BE-TA55P8.G2

Brands

MDT
