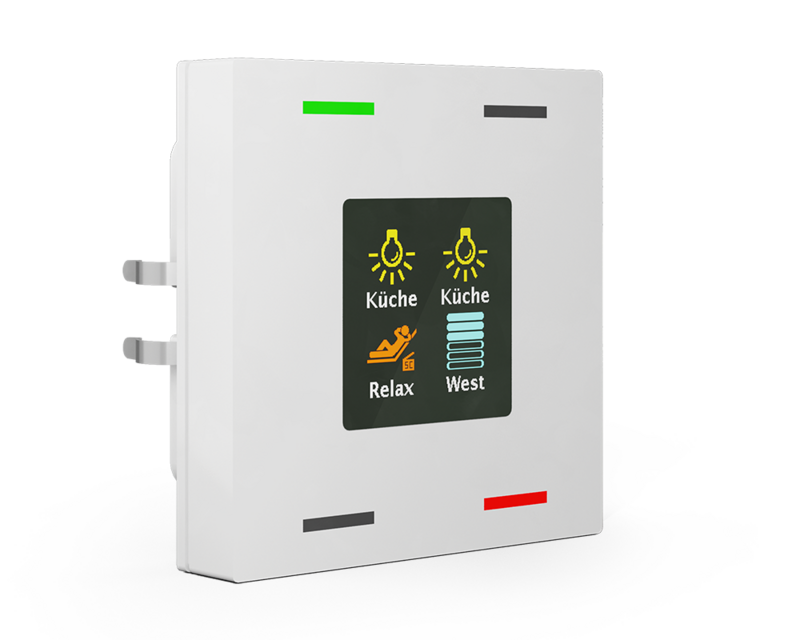

Push Button Smart 63 | 4-fold with colour display

The MDT Push-button Smart 63 has a central colour display and mechanical push-buttons. The buttons can be used individually or grouped (horizontally or vertically). In addition to the status indication in the display, each button has its own RGB status LED. The RGBW status LEDs can be controlled using internal or external objects. The LED brightness can be controlled using a day / night and brightness object. Aside from switching, dimming, shutter, scenes or sending values, there are numerous functions to choose from. The Push-button Smart 63 has 4 integrated logic modules. Fits 63 mm systems / ranges. Active color display for function and status indication. Adjustable background color of the display (white or black). Automatic display brightness via light sensor and day / night object. Visualization of indoor / outdoor temperature and time. With temperature / humidity sensor for room temperature measurement (only BE-TAS63T4.01). Additional functions for temperature setting and operation mode (only BE-TAS63T4.01). New multi-touch function, sends up to 4 values / DPTs on the same or different objects. Innovative group control with long / extra long button press. 1 and 2 button operation for switching, dimming, shutters, values. Symbols and plain text adjustable for each button / function. Short / long button push and 2 objects. Installation in an installation box with included support ring. Recommended installation height: 1.05 – 1.20 m. No additional power supply required. Integrated bus coupling unit. Production in Germany certified according to ISO 9001. 3 year warranty.

The MDT Push-buttons Smart 63 fit into the switch lines of leading manufacturers, such as:

• Busch-Jaeger future linear, solo, carat, Busch-axcent

Feature: Push Button.

Colour: Studio white gloss.

Functional Areas: 4-fold.

Status Display: Yes.

Colour Display: Yes.

Digital Labeling: Yes.

Humidity Sensor: No, Yes.

Assortment: 63 mm.
