Push-button Smart 86 | Series .02 – color display

Description

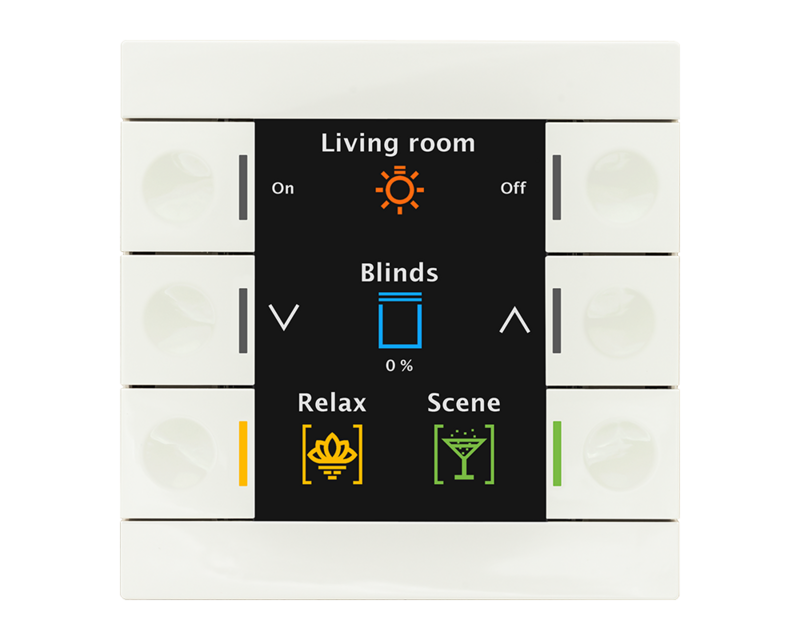

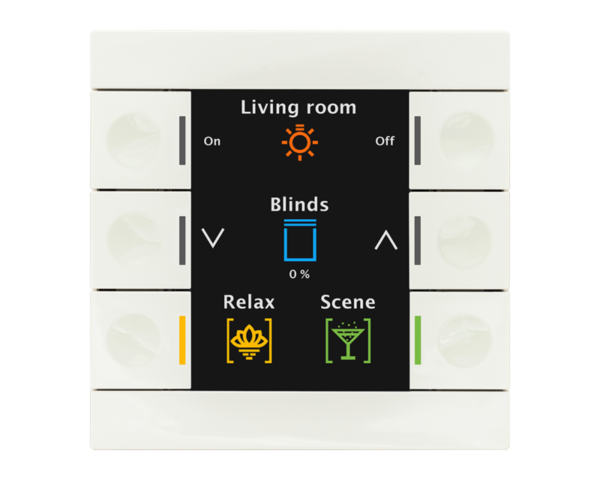

The Push-button Smart 86 has six mechanical buttons with finger recesses. The push-button can be used to map up to 12 functions plus the “slap function”. The buttons are labelled individually using symbols and texts on the large active colour display. The status of the respective function can be detected both on the display and via the RGB display of the buttons. The display dynamically adjusts to the surrounding brightness and can be automatically switched off at night. The variant that comes with a temperature sensor offers additional functions for setting the temperature of the heating or air conditioning. Large, colored active display to indicate function and status. Adjustable background color of the disply (white or black). Symbols and plain text adjustable for each button/function. 6 mechanical buttons with finger recess. Up to 12 functions on 2 or 3 levels (2×6 or 3×4 functions). Up to 6 functions without level switching. The buttons can be programmed for 1 or 2 button operation. 1 or 2 button operation for switching, dimming, shutters, values. Short / long button push with 2 objects. RGB status for each button separately controllable from each level. Visualization of inside / outside temperature and time. Automatic display brightness via light sensor and day / night object. Slap function with additional switch channel. Installation without frame in an installation box. Dimensions (W x H): 86 mm x 86 mm. Recommended installation height: 1.10 – 1.25 m (as Push-button). No additional power supply required. Integrated bus coupling unit. Production in Germany, certified according to ISO 9001. 3 year warranty.

New functions series .02:

  • Innovative group control with long / extra long keystroke
  • New mapping function for easy function assignment
  • Extended info display with up to 3 lines and up to 6 measured values
  • Modern new icons
  • Patch function with extended range of functions

Colour: Pure white gloss.

Colour Display: Yes.

Temperature Sensor: Yes.

Downloads

Technical Documentation Date Version Downloads
Device Configuration App (DCA) ETS5/6 From ETS5.7.x 06/23 V4.5.1.0 etsapp
Productdatabase ETS5/6 From ETS5.7x 10/22 V3.0 knxprod
Datasheet pdf
Functional overview pdf
Assembly and operational instructions pdf
Technical manual pdf
Tender texts Link
Available Variants of this series:
Push-button Smart 86 | Series .02 - color display
Temperature Sensor: No
Push-button Smart 86 | Series .02 - color display
Temperature Sensor: Yes
