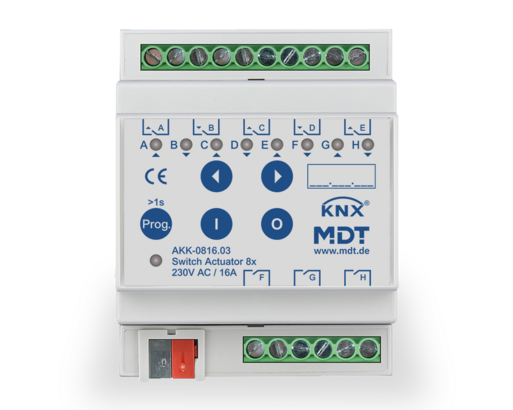

Switch Actuators AKK compact | 230 V AC / 10 ECG

The compact MDT Switch Actuator AKK for small to medium loads offers a wide range of functions. The AKK switch actuator with four channels, for example, only requires two switch units in the distribution system; whereas comparable switch actuators usually require four. The maximum switching capacity is 16 A and 70 µF C-load. Function extension. Lockable manual operation and LED indicator for each channel. NO and NC contact operation. Status response with manual operation. Time functions (switch-on / switch-off delay). Extensive staircase light and impulse functions. Status response (active / passive) for each channel. Logical linking of binary data. Extendend scene functions for each channel. Central switching functions and blocking for forced operation. Adjustable behavior in case of bus voltage failure / return. 4 mm² / 2 x 2.5 mm² screw terminals. Separate supply phases. Common supply phase (AKK-02 / 0416.03). Separate L-connections (AKK-08 / 16 / 2416.03). Power supply via KNX bus. Quick application download (long frame support with ETS 5 or higher). Production in Germany, certified according to ISO 9001. 3 year warranty.

Installation Type: MDRC.

Application Area: Compact.

Channels: 2-fold, 4-fold, 8-fold, 16-fold, 24-fold.

C Load: 70µF.

Ampere: 16 A.

Device width: 2SU, 4SU, 8SU, 12SU.

You can find a product comparison of our switch actuators here.
