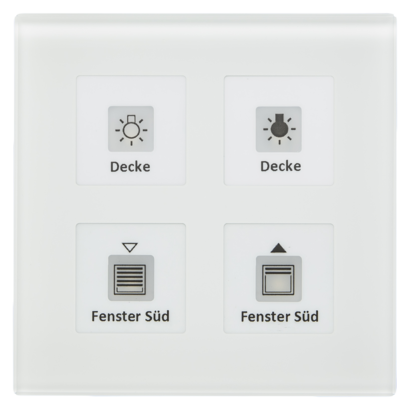

KNX RF+ Glass Push-button Plus | 10 A

Description

The MDT KNX RF+ Glas Push-button Plus releases KNX telegrams after touching the sensor areas on top, 1 or 2 button operation can be parameterized. KNX RF+ protocol in system mode. Commissioning with ETS5 or higher. With temperature sensor to measure room temperature. Sensor areas can be programmed for 1 or 2 button operation. NO or NC contact operation, operational time of push-button adjustable. Forced setting function for each output. Operation with short / long button push and 2 objects. Operation of blinds and shutters, 1 and 2 button operation. Can be set as 2-fold switching actuator or 1-fold shutter actuator (version with 4 buttons). Can be set as 4-fold switching actuator or 2-fold shutter actuator (version with 8 buttons). 4 integrated logical functions, cleaning function. Additional switching channel (e.g. panic function). Connection via KNX RF+ Line Coupler. Surrounding orientation light with day / night object. Labelling foil to be inserted behind the glass front. To replace conventionel push buttons. To upgrade your installation without installing KNX bus cables. Power supply 230 V AC. Dimensions: 4-fold 92 x 92 mm / 8-fold 92 x 163 mm. Installation with included support ring, delivery with labeling foil. Integrated bus coupling unit. Production in Germany, certified according to ISO 9001. 3 year warranty.

Channels: 2-fold, 4-fold.

C Load: 14µF.

Ampere: 10 A.

Colour: White, Black.

Functional Areas: 4-fold, 8-fold.

Temperature Sensor: Yes.

Mounting: Wall.

Downloads

Technical Documentation Date Version Downloads
Productdatabase ETS5/6 from ETS5.7x 02/17 V1.0 knxprod
Datasheet pdf
Assembly and operational instructions for Glass Push-button 4-fold pdf
Assembly and operational instructions for Glass Push-button 8-fold pdf
Technical manual pdf
Tender texts Link
Technical Information KNX RF pdf
Print template with icons. Requires Adobe Acrobat Reader zip
Available Variants of this series:
KNX RF+ Glass Push-button Plus | 10 A

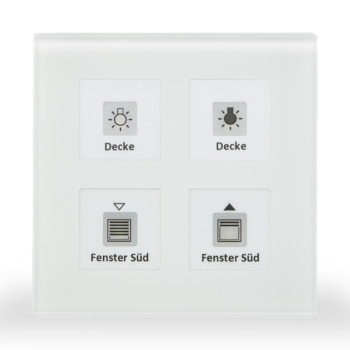

Channels: 2-fold; Colour: White; Functional Areas: 4-fold
KNX RF+ Glass Push-button Plus | 10 A

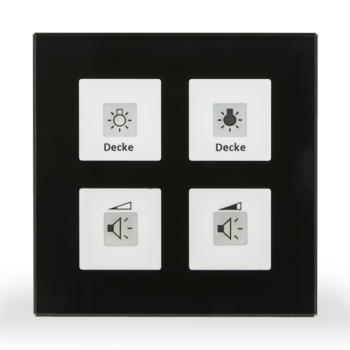

Channels: 2-fold; Colour: Black; Functional Areas: 4-fold
KNX RF+ Glass Push-button Plus | 10 A
Channels: 4-fold; Colour: White; Functional Areas: 8-fold
KNX RF+ Glass Push-button Plus | 10 A

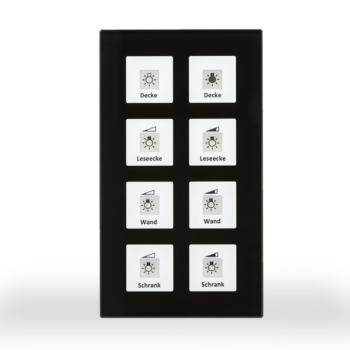

Channels: 4-fold; Colour: Black; Functional Areas: 8-fold
