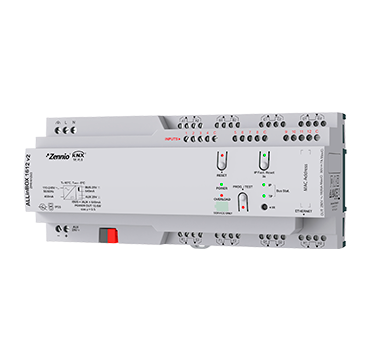

ALLinBOX 1612 v2 | Multifunction device with KNX power supply, KNX-IP Interface, 16 outputs/12 inputs and logic module


The starting point for most projects incorporating control and monitoring functionalities. Multifunction device that integrates a 640 mA KNX power supply, KNX-IP Interface, 4 independent thermostats, logical module, 12 analog/digital inputs and 16 relay outputs (16 A C-Load) in only 12 DIN rail units. Offers multiple configuration options as individual outputs, shutter channels or fan coil controller (2/4 pipes).


Only for ETS5/ETS6


Technical Documentation Date Version Downloads
Datasheet 6 pdf
Manual [1.7]_a pdf
Firmware Updater Manual [1.1]_b pdf
Specific Manuals:
 – NTP Clock Manual [1.0]_a pdf
 – ’Relays’ Fan Coil Manual [4.0]_a pdf
 – “Hospitality” Thermostat Manual [4.0]_a pdf
 – Zennio Thermostat Manual [3.0]_a pdf
 – Temperature Probe Manual [3.0]_a pdf
 – Binary Inputs Manual [2.0]_a pdf
 – Motion Detector Manual [3.0]_a pdf
 – Individual Binary Outputs Manual [2.0]_a pdf
 – Shutter Channels Manual [4.0]_a pdf
 – Logical Functions Manual [3.0]_a pdf
Available Variants of this series:
