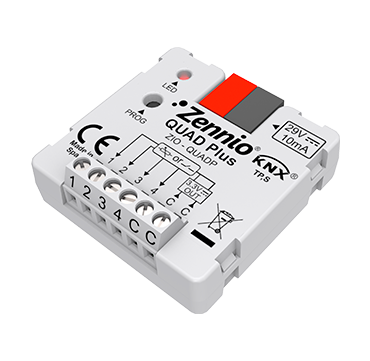

QUAD Plus | Input module with 4 analog-digital inputs

REF: ZIO-QUADP Categorias: , Etiquetas: , , ,
Description

Analog/digital sensor. QUAD Plus is an analog/digital sensor that offers a large variety of functionality. Its 4 optocoupled multi-function inputs may be configured as digital inputs for sensors and potential-free push buttons, as temperature probes or as a motion sensor. Four room thermostats for heating/cooling control systems included.

Accessories: Temperature probes and motion sensor.

APPLICATION PROGRAM ETS:

Only for ETS5/ETS6

Downloads

Technical Documentation Date Version Downloads
Datasheet 6 pdf
Manual [1.6]_a pdf
Specific Manuals:
 – Zennio Thermostat Manual [3.0]_a pdf
 – Temperature Probe Manual [1.0]_a pdf
 – Binary Inputs Manual [0.3]_a pdf
 – Motion Detector Manual [0.3]_a pdf
Available Variants of this series:
